View larger
Images are for illustrative purposes only. Please refer to data sheet for details

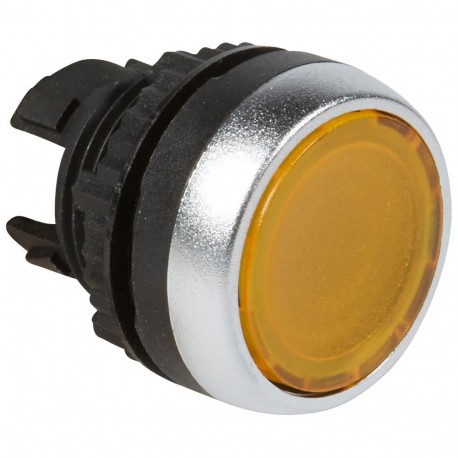

024004 LEGRAND HEAD PUSHBUTTON LUM YELLOW
024004
024004
LEGRAND
5 Pcs.
HEAD PUSHBUTTON LUM YELLOW
Osmoz illuminated spring return head - flush - yellow
Osmoz IP69 Modular Ceiling Impulse Head - Yellow
Automation > Front element for push button
ACCESSORIES CONTROL AND CONTROL PANELS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲- RoHS Compliant
- Pack (number of units)5
- Volume (dm3)0.314
- Weight (g)70.00
Product characteristics
Spring returnFlush
- Yellow
General characteristics
Osmoz control and signalling units: illuminated heads- Supplied with a fixing ring
- IP 66, IP 69K
- Conform to IEC 60947-5-1
| Feature Name | Feature Value |
|---|---|
| Number of command positions (EF001372) | 1 |
| Material front ring (EF005972) | Plastic |
| Switching function latching (EF007447) | No |
| With front ring (EF006014) | Yes |
| Suitable for lighting (EF001142) | Yes |
| Hole diameter (EF000079) | 22.5 mm |
| With protective cover (EF005500) | No |
| Construction type lens (EF006253) | Round |
| Colour button (EF000190) | Yellow |
| Degree of protection (IP), front side (EF003118) | IP66 |
| Type of button (EF001546) | Flat |
| Labelled (EF001537) | No |
| Colour front ring (EF002429) | Chrome |
| Spring-return (EF001407) | Yes |
