View larger
Images are for illustrative purposes only. Please refer to data sheet for details

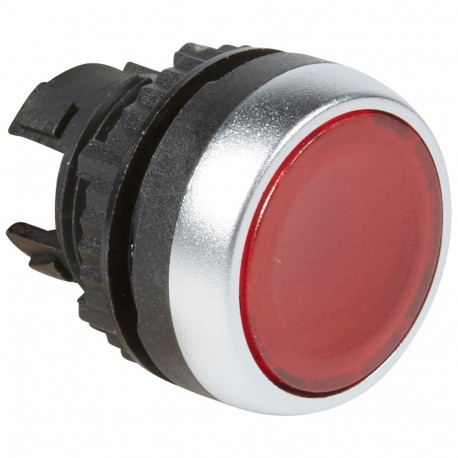

024001 LEGRAND HEAD PUSHBUTTON LUM RED
024001
024001
LEGRAND
10 Pcs.
HEAD PUSHBUTTON LUM RED
Osmoz illuminated spring return head - flush - red
Osmoz IP69 Modular Ceiling Impulse Head - Red
Automation > Front element for push button
ACCESSORIES CONTROL AND CONTROL PANELS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲- RoHS Compliant
- Pack (number of units)10
- Volume (dm3)0.527
- Weight (g)130.00
Product characteristics
Spring returnFlush
- Red
General characteristics
Osmoz control and signalling units: illuminated heads- Supplied with a fixing ring
- IP 66, IP 69K
- Conform to IEC 60947-5-1
| Feature Name | Feature Value |
|---|---|
| Number of command positions (EF001372) | 1 |
| Material front ring (EF005972) | Plastic |
| Switching function latching (EF007447) | No |
| With front ring (EF006014) | Yes |
| Suitable for lighting (EF001142) | Yes |
| Hole diameter (EF000079) | 22.5 mm |
| With protective cover (EF005500) | No |
| Construction type lens (EF006253) | Round |
| Colour button (EF000190) | Red |
| Degree of protection (IP), front side (EF003118) | IP66 |
| Type of button (EF001546) | Flat |
| Labelled (EF001537) | No |
| Colour front ring (EF002429) | Chrome |
| Spring-return (EF001407) | Yes |
