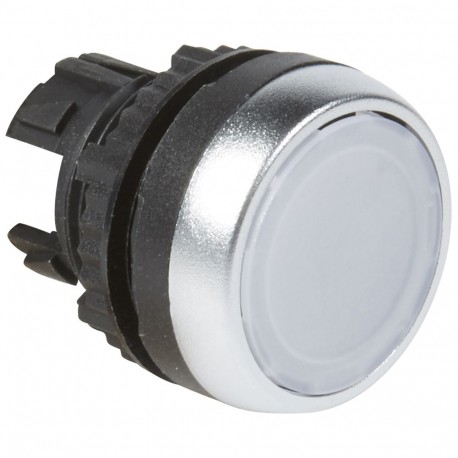

LEGRAND 024000 024000 LEGRAND HEAD PUSH-LUM WHITE View larger
Images are for illustrative purposes only. Please refer to data sheet for details

024000 LEGRAND HEAD PUSH-LUM WHITE

024000

024000

LEGRAND

10 Pcs.

HEAD PUSH-LUM WHITE Osmoz illuminated spring return head - flush - white Osmoz IP69 Modular Ceiling Impulse Head - White

Automation > Front element for push button
ACCESSORIES CONTROL AND CONTROL PANELS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Legrand 024000 head push-lum white is an illuminated control operator designed for installation in standard industrial enclosures and machine control panels. It provides operators with an ergonomic manual interface for issuing momentary commands while delivering clear visual indication within the automation network.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Number of command positions (EF001372): 1
  • Material front ring (EF005972): Plastic
  • Switching function latching (EF007447): No
  • With front ring (EF006014): Yes
  • Suitable for lighting (EF001142): Yes
  • Hole diameter (EF000079): 22.5 mm
  • With protective cover (EF005500): No
  • Construction type lens (EF006253): Round
  • Colour button (EF000190): White
  • Degree of protection (IP), front side (EF003118): IP66
  • Type of button (EF001546): Flat
  • Labelled (EF001537): No
  • Colour front ring (EF002429): Chrome
  • Spring-return (EF001407): Yes

More info

▲
  • RoHS Compliant
  • Pack (number of units)10
  • Volume (dm3)0.547
  • Weight (g)134.00
Product characteristics
Spring return
Flush
  • White
General characteristics
Osmoz control and signalling units: illuminated heads
  • Supplied with a fixing ring
  • IP 66, IP 69K
  • Conform to IEC 60947-5-1
