View larger
Images are for illustrative purposes only. Please refer to data sheet for details

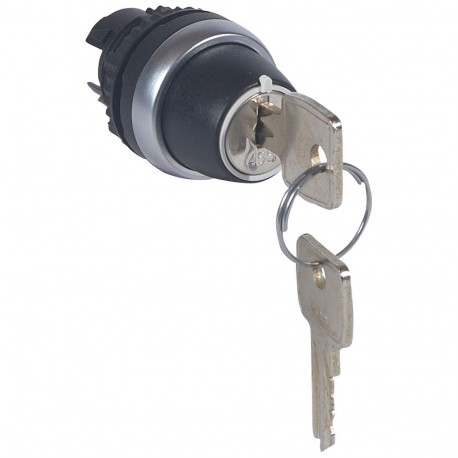

023952 LEGRAND HEAD SELECT WITH KEY 2P
023952
023952
LEGRAND
1 Pcs.
HEAD SELECT WITH KEY 2P
Osmoz non illuminated key selector switch - 2 positions spring return 45°
Non-illuminated rotary knob with key n°455 IP69 Osmoz modular - 2 pos
Automation > Front element for selector switch
ACCESSORIES CONTROL AND CONTROL PANELS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲- RoHS Compliant
- Pack (number of units)1
- Volume (dm3)0.08
- Weight (g)46.00
Product characteristics
Selector switchesWith key
- Black button
- 2 positions with spring-return - 45°
General characteristics
Osmoz control and signalling units: non-illuminated heads- Supplied with a fixing ring
- IP 69, IP 69K
- Conform to IEC 60947-5-1
| Feature Name | Feature Value |
|---|---|
| Material front ring (EF005972) | Plastic |
| Switching function latching (EF007447) | No |
| Type of control element (EF006976) | Key |
| With front ring (EF006014) | Yes |
| Suitable for lighting (EF001142) | No |
| Number of switch positions (EF000231) | 2 |
| Hole diameter (EF000079) | 22.5 mm |
| Colour indicator light cap (EF007165) | Other |
| Colour control element (EF007167) | Silver |
| Construction type lens (EF006253) | Round |
| Degree of protection (IP), front side (EF003118) | IP66 |
| Colour front ring (EF002429) | Chrome |
| Spring-return (EF001407) | Yes |
