View larger
Images are for illustrative purposes only. Please refer to data sheet for details

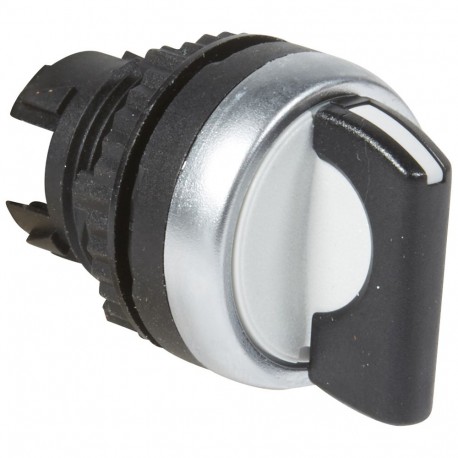

023923 LEGRAND HEAD SELECTOR 3P BLACK
023923
023923
LEGRAND
10 Pcs.
HEAD SELECTOR 3P BLACK
Osmoz non illuminated standard handle selector switch - 3 stay-put positions - black
Non-illuminated rotary knob with black IP69 Osmoz modular handle - 3 fixed pos
Automation > Front element for selector switch
ACCESSORIES CONTROL AND CONTROL PANELS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲- RoHS Compliant
- Pack (number of units)10
- Volume (dm3)0.80
- Weight (g)168.00
Product characteristics
Selector switchesWith standard handle
- Black
- Positions : 3 stay-put positions - 45°
General characteristics
Osmoz control and signalling units: non-illuminated heads- Supplied with a fixing ring
- IP 69, IP 69K
- Conform to IEC 60947-5-1
| Feature Name | Feature Value |
|---|---|
| Material front ring (EF005972) | Plastic |
| Switching function latching (EF007447) | Yes |
| Type of control element (EF006976) | Toggle |
| With front ring (EF006014) | Yes |
| Suitable for lighting (EF001142) | No |
| Number of switch positions (EF000231) | 3 |
| Hole diameter (EF000079) | 22.5 mm |
| Colour indicator light cap (EF007165) | Other |
| Colour control element (EF007167) | Black |
| Construction type lens (EF006253) | Round |
| Degree of protection (IP), front side (EF003118) | IP66 |
| Colour front ring (EF002429) | Chrome |
| Spring-return (EF001407) | No |
