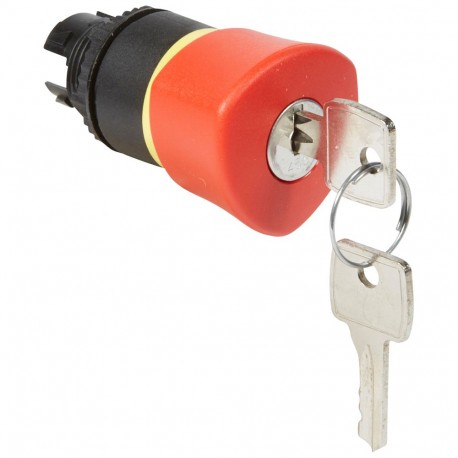

LEGRAND 023892 023892 LEGRAND HEAD PULS MUSHROOM DIAM 40 RED View larger
Images are for illustrative purposes only. Please refer to data sheet for details

023892 LEGRAND HEAD PULS MUSHROOM DIAM 40 RED

023892

023892

LEGRAND

1 Pcs.

HEAD PULS MUSHROOM DIAM 40 RED Osmoz non illuminated stay-put mushroom head - with key EN 418 - red Ø40 Ø40 n°455 knob with emergency stop key IP69 Osmoz modular - red

Automation > Front element for mushroom push-button
ACCESSORIES CONTROL AND CONTROL PANELS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Legrand key-release mushroom pushbutton (part number 023892) is implemented in safety control circuits where restricted access and secure latching are required to prevent accidental or unauthorized system resets. The integrated key lock mechanism protects critical machine states.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Material front ring (EF005972): Plastic
  • Switching function latching (EF007447): Yes
  • With front ring (EF006014): Yes
  • Suitable for lighting (EF001142): No
  • Degree of protection (IP) (EF005474): IP66
  • Suitable for emergency stop (EF001433): Yes
  • Hole diameter (EF000079): 22.5 mm
  • Construction type lens (EF006253): Round
  • Colour button (EF000190): Red
  • Degree of protection (NEMA) (EF011959): 4X
  • Diameter cap (EF001423): 40 mm
  • Unlocking method (EF001403): Key-release
  • Type of button (EF001546): High
  • Colour front ring (EF002429): Yellow
  • Spring-return (EF001407): No

More info

▲
  • RoHS Compliant
  • Pack (number of units)1
  • Volume (dm3)0.229
  • Weight (g)68.00
Product characteristics
Stay-put mushroom heads
ISO 13850 emergency stop with key
  • Ø40
  • Red
General characteristics
Osmoz control and signalling units: non-illuminated heads
  • Supplied with a fixing ring
  • IP 69, IP 69K
  • Conform to IEC 60947-5-1
