LEGRAND 023882 023882 LEGRAND HEAD PULS MUSHROOM DIAM 40 RED View larger
Images are for illustrative purposes only. Please refer to data sheet for details

023882 LEGRAND HEAD PULS MUSHROOM DIAM 40 RED

023882

023882

LEGRAND

10 Pcs.

HEAD PULS MUSHROOM DIAM 40 RED Osmoz non illuminated stay-put mushroom head - push-turn - red Ø40 Fixed non-illuminated mushroom head Osmoz - push button - rotary - red Ø40

Automation > Front element for mushroom push-button
ACCESSORIES CONTROL AND CONTROL PANELS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

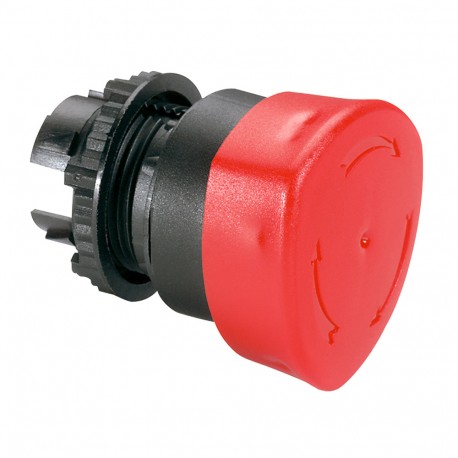

023882 LEGRAND HEAD PULS MUSHROOM DIAM 40 RED is a Legrand mushroom head pushbutton actuator utilized in control panels to facilitate manual operator intervention. Turn-release mushroom operators provide secure latching control and reliable mechanical stopping capabilities in factory environments.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Switching function latching (EF007447): Yes
  • With front ring (EF006014): No
  • Suitable for lighting (EF001142): No
  • Degree of protection (IP) (EF005474): IP66
  • Suitable for emergency stop (EF001433): No
  • Hole diameter (EF000079): 22.5 mm
  • Construction type lens (EF006253): Round
  • Colour button (EF000190): Red
  • Degree of protection (NEMA) (EF011959): 4X
  • Diameter cap (EF001423): 40 mm
  • Unlocking method (EF001403): Turn-release
  • Type of button (EF001546): High
  • Spring-return (EF001407): No

More info

▲
  • RoHS Compliant
  • Pack (number of units)10
  • Volume (dm3)1.315
  • Weight (g)288.00
Product characteristics
Stay-put mushroom heads
Push-turn emergency stop
  • Ø40
  • Red
General characteristics
Osmoz control and signalling units: non-illuminated heads
  • Supplied with a fixing ring
  • IP 69, IP 69K
  • Conform to IEC 60947-5-1

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
