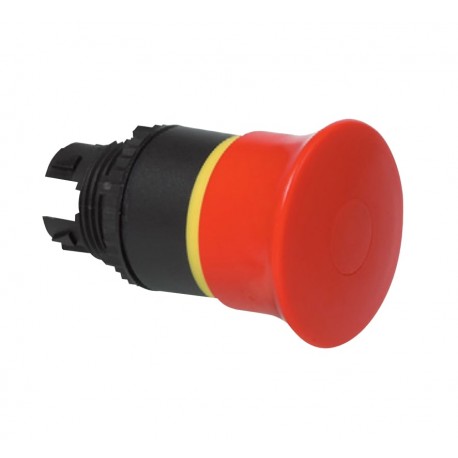

LEGRAND 023874 023874 LEGRAND HEAD PULS MUSHROOM DIAM 40 RED View larger
Images are for illustrative purposes only. Please refer to data sheet for details

023874 LEGRAND HEAD PULS MUSHROOM DIAM 40 RED

023874

023874

LEGRAND

10 Pcs.

HEAD PULS MUSHROOM DIAM 40 RED Osmoz non illuminated stay-put mushroom head - push-pull EN 418 - red Mushroom Ø40 push - pull emergency stop IP69 Osmoz modular - red

Automation > Front element for mushroom push-button
ACCESSORIES CONTROL AND CONTROL PANELS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Legrand 023874 mushroom head control operator acts as a secure manual interface for industrial automation systems and emergency shutdown loops. Built with a latching architecture, the red cap holds its activated state upon a firm push, requiring a deliberate pull-release action to restore normal circuit continuity. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Material front ring (EF005972): Plastic
  • Switching function latching (EF007447): Yes
  • With front ring (EF006014): Yes
  • Suitable for lighting (EF001142): No
  • Degree of protection (IP) (EF005474): IP66
  • Suitable for emergency stop (EF001433): Yes
  • Hole diameter (EF000079): 22.5 mm
  • Construction type lens (EF006253): Round
  • Colour button (EF000190): Red
  • Degree of protection (NEMA) (EF011959): 4X
  • Diameter cap (EF001423): 40 mm
  • Unlocking method (EF001403): Pull-release
  • Type of button (EF001546): High
  • Colour front ring (EF002429): Yellow
  • Spring-return (EF001407): No

More info

▲
  • RoHS Compliant
  • Pack (number of units)10
  • Volume (dm3)1.315
  • Weight (g)336.00
Product characteristics
Stay-put mushroom heads
Push-pull ISO 13850 emergency stop
  • Ø40
  • Red
General characteristics
Osmoz control and signalling units: non-illuminated heads
  • Supplied with a fixing ring
  • IP 69, IP 69K
  • Conform to IEC 60947-5-1
