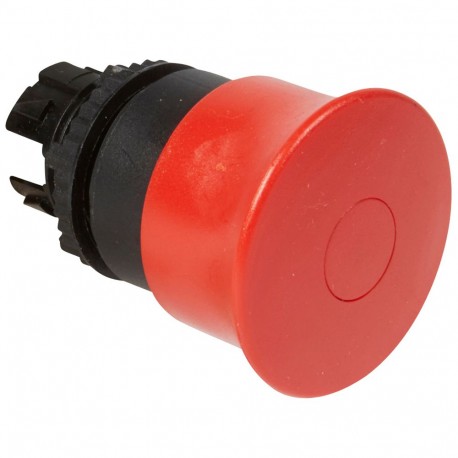

LEGRAND 023872 023872 LEGRAND HEAD PULS MUSHROOM DIAM 40 RED View larger
Images are for illustrative purposes only. Please refer to data sheet for details

023872 LEGRAND HEAD PULS MUSHROOM DIAM 40 RED

023872

023872

LEGRAND

10 Pcs.

HEAD PULS MUSHROOM DIAM 40 RED Osmoz non illuminated stay-put mushroom head - push-pull - red Osmoz modular emergency disconnect Ø40 push - pull IP69 - red

Automation > Front element for mushroom push-button
ACCESSORIES CONTROL AND CONTROL PANELS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Control panels and industrial automation consoles rely on mushroom operators to provide clear, accessible mechanical switching interfaces for machine operations. The Legrand 023872 head unit features a prominent 40mm red cap with a pull-release unlocking method, designed to integrate seamlessly into standard 22.5mm mounting cutouts.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Switching function latching (EF007447): Yes
  • With front ring (EF006014): No
  • Suitable for lighting (EF001142): No
  • Degree of protection (IP) (EF005474): IP66
  • Suitable for emergency stop (EF001433): No
  • Hole diameter (EF000079): 22.5 mm
  • Construction type lens (EF006253): Round
  • Colour button (EF000190): Red
  • Degree of protection (NEMA) (EF011959): 4X
  • Diameter cap (EF001423): 40 mm
  • Unlocking method (EF001403): Pull-release
  • Type of button (EF001546): High
  • Spring-return (EF001407): No

More info

▲
  • RoHS Compliant
  • Pack (number of units)10
  • Volume (dm3)1.316
  • Weight (g)313.00
Product characteristics
Stay-put mushroom heads
Push-pull emergency stop
  • Ø40
  • Red
General characteristics
Osmoz control and signalling units: non-illuminated heads
  • Supplied with a fixing ring
  • IP 69, IP 69K
  • Conform to IEC 60947-5-1
