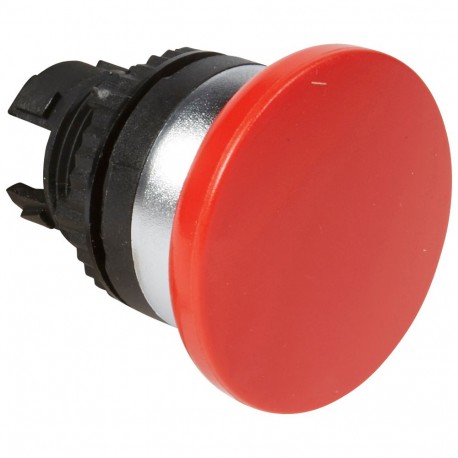

LEGRAND 023834 023834 LEGRAND HEAD PULS MUSHROOM DIAM 40 RED View larger
Images are for illustrative purposes only. Please refer to data sheet for details

023834 LEGRAND HEAD PULS MUSHROOM DIAM 40 RED

023834

023834

LEGRAND

10 Pcs.

HEAD PULS MUSHROOM DIAM 40 RED Osmoz non illuminated spring return head - mushroom head Ø40 - red Osmoz IP69 Ø40 non-luminous modular pushbutton head - red

Automation > Front element for push button
ACCESSORIES CONTROL AND CONTROL PANELS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

023834 LEGRAND HEAD PULS MUSHROOM DIAM 40 RED is a red mushroom head pushbutton actuator typically mounted on control panels to serve as an emergency stop or prominent operator command input. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Number of command positions (EF001372): 1
  • Material front ring (EF005972): Plastic
  • Switching function latching (EF007447): No
  • With front ring (EF006014): Yes
  • Suitable for lighting (EF001142): No
  • Hole diameter (EF000079): 22.5 mm
  • With protective cover (EF005500): No
  • Construction type lens (EF006253): Round
  • Colour button (EF000190): Red
  • Degree of protection (IP), front side (EF003118): IP66
  • Type of button (EF001546): High
  • Labelled (EF001537): No
  • Colour front ring (EF002429): Chrome
  • Spring-return (EF001407): Yes

More info

▲
  • RoHS Compliant
  • Pack (number of units)10
  • Volume (dm3)0.751
  • Weight (g)193.00
Product characteristics
Spring return
Mushroom head Ø40
  • Red
General characteristics
Osmoz control and signalling units: non-illuminated heads
  • Supplied with a fixing ring
  • IP 69, IP 69K
  • Conform to IEC 60947-5-1

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
