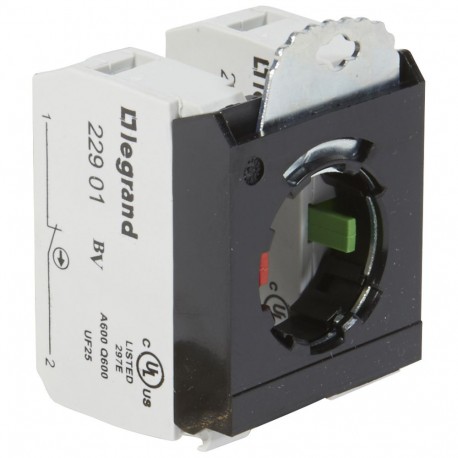

LEGRAND 022976 022976 LEGRAND BLOCK CONT 1NA1NC + SOP 3E View larger
Images are for illustrative purposes only. Please refer to data sheet for details

022976 LEGRAND BLOCK CONT 1NA1NC + SOP 3E

022976

022976

LEGRAND

10 Pcs.

BLOCK CONT 1NA1NC + SOP 3E Osmoz block sub-assemblies - for non illum head - NO+NC + 3 position clip 1NA Block + 1 NC Block + 3-Module Clamp for Non-Illuminated Heads

Automation > Auxiliary contact block
ACCESSORIES CONTROL AND CONTROL PANELS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A contact block attachment, such as the Legrand 022976, is designed for snap-on integration with control devices to manage secondary switching operations. Technicians use these blocks to customize pushbuttons and switches with specific normally open and normally closed circuit paths.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Model (EF000010): Top mounting and integrable
  • Rated operation current Ie at AC-15, 230 V (EF001385): 3 A
  • Number of contacts as change-over contact (EF008257): 0
  • Mounting method (EF000003): Front fastening
  • Type of electric connection (EF003961): Screw connection
  • Number of contacts as normally closed contact (EF008255): 1
  • Number of contacts as normally open contact (EF008256): 1

More info

▲
  • RoHS Compliant
  • Pack (number of units)10
  • Volume (dm3)0.952
  • Weight (g)352.00
Product characteristics
For non-illuminated heads
Screw terminals
  • NO + NC + 3 position clip
General characteristics
Osmoz control and signalling units: block sub-assemblies
  • Clip and screw electrical blocks assembled
  • Conform to IEC 60947-5-1
