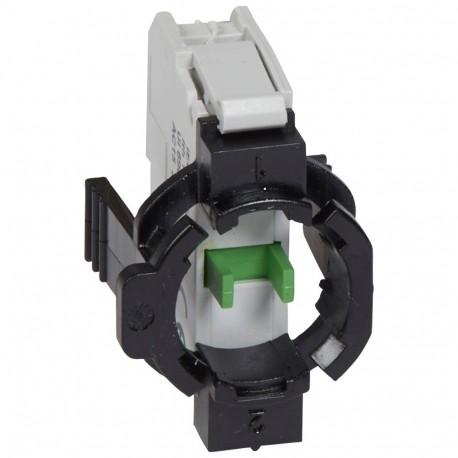

LEGRAND 022962 022962 LEGRAND BLOCK CONT 1NO + SOP 1E View larger
Images are for illustrative purposes only. Please refer to data sheet for details

022962 LEGRAND BLOCK CONT 1NO + SOP 1E

022962

022962

LEGRAND

10 Pcs.

BLOCK CONT 1NO + SOP 1E Osmoz block sub-assemblies - for non illum head - NO + 1 position clip 1NA block + clamp for 1 module for non-illuminated heads

Automation > Auxiliary contact block
ACCESSORIES CONTROL AND CONTROL PANELS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

022962 LEGRAND BLOCK CONT 1NO + SOP 1E functions as an add-on contact block designed for integration with modular control devices and contactors. It adds a normally open contact path to enable customized signaling and interlocking within low-voltage distribution assemblies.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Model (EF000010): Top mounting and integrable
  • Rated operation current Ie at AC-15, 230 V (EF001385): 3 A
  • Number of contacts as change-over contact (EF008257): 0
  • Mounting method (EF000003): Front fastening
  • Type of electric connection (EF003961): Screw connection
  • Number of contacts as normally closed contact (EF008255): 0
  • Number of contacts as normally open contact (EF008256): 1

More info

▲
  • RoHS Compliant
  • Pack (number of units)10
  • Volume (dm3)0.952
  • Weight (g)176.00
Product characteristics
For non-illuminated heads
Screw terminals
  • NO + 1 position clip
General characteristics
Osmoz control and signalling units: block sub-assemblies
  • Clip and screw electrical blocks assembled
  • Conform to IEC 60947-5-1
