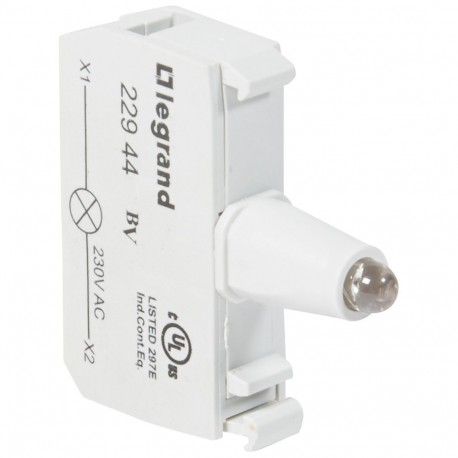

LEGRAND 022944 022944 LEGRAND BLOCK LED 230V YELLOW View larger
Images are for illustrative purposes only. Please refer to data sheet for details

022944 LEGRAND BLOCK LED 230V YELLOW

022944

022944

LEGRAND

5 Pcs.

BLOCK LED 230V YELLOW Osmoz electrical block - for illuminated head - yellow 230 V~ Osmoz light head splice block - 230V~ - yellow

Automation > Lamp holder block for control circuit devices
ACCESSORIES CONTROL AND CONTROL PANELS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A Legrand block LED serves as a dependable light source for modular operator interfaces in industrial switchboards and control cabinets. These components snap securely behind control devices to deliver bright, consistent visual cues for complex electrical systems.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Connection type auxiliary circuit (EF006820): Screw connection
  • Rated voltage Ue at AC 50 Hz (EF007029): 195.5 V
  • Lamp type (EF002423): LED
  • Type of fastening (EF002442): Front fastening
  • With integrated diode (EF001400): Yes
  • With integrated voltage decreasing resistor (EF001399): Yes
  • Voltage type for actuating (EF008242): AC
  • Rated voltage Ue at AC 60 Hz (EF007030): 195.5 V
  • Transformer integrated (EF001358): No
  • Colour light source (EF001402): Yellow
  • With light source (EF005905): Yes

More info

▲
  • RoHS Compliant
  • Pack (number of units)5
  • Volume (dm3)0.229
  • Weight (g)75.00
Product characteristics
For illuminated heads
Screw terminals
  • 230 V~
  • Yellow
General characteristics
Osmoz control and signalling units: electrical blocks
  • IP 20
  • Conform to IEC 60947-5-1

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
