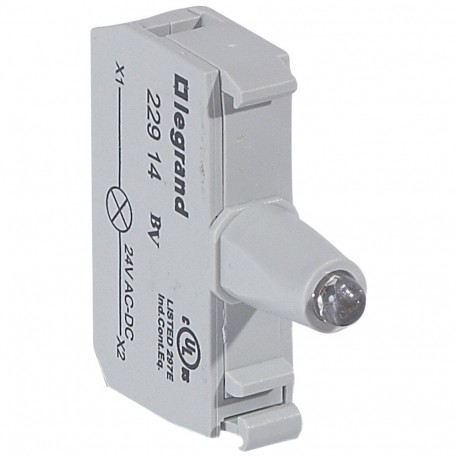

LEGRAND 022914 022914 LEGRAND BLOCK LED 24V YELLOW View larger
Images are for illustrative purposes only. Please refer to data sheet for details

022914 LEGRAND BLOCK LED 24V YELLOW

022914

022914

LEGRAND

5 Pcs.

BLOCK LED 24V YELLOW Osmoz electrical block - for illuminated head - yellow - 12-24 V~/= Osmoz light head splice block - 12V to 24V - yellow

Automation > Lamp holder block for control circuit devices
ACCESSORIES CONTROL AND CONTROL PANELS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A Legrand LED block integrates into control auxiliary circuits to provide bright yellow status illumination for front-fastened operator devices. Panel builders use these components to ensure clear visibility of machine statuses in industrial environments. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Connection type auxiliary circuit (EF006820): Screw connection
  • Rated voltage Ue at AC 50 Hz (EF007029): 10.8 V
  • Lamp type (EF002423): LED
  • Type of fastening (EF002442): Front fastening
  • With integrated diode (EF001400): Yes
  • With integrated voltage decreasing resistor (EF001399): Yes
  • Voltage type for actuating (EF008242): AC/DC
  • Rated voltage Ue at AC 60 Hz (EF007030): 10.8 V
  • Rated voltage Ue at DC (EF007031): 10.8 V
  • Transformer integrated (EF001358): No
  • Colour light source (EF001402): Yellow
  • With light source (EF005905): Yes

More info

▲
  • RoHS Compliant
  • Pack (number of units)5
  • Volume (dm3)0.229
  • Weight (g)75.00
Product characteristics
For illuminated heads
Screw terminals
  • 12-24 V~/=
  • Yellow
General characteristics
Osmoz control and signalling units: electrical blocks
  • IP 20
  • Conform to IEC 60947-5-1
