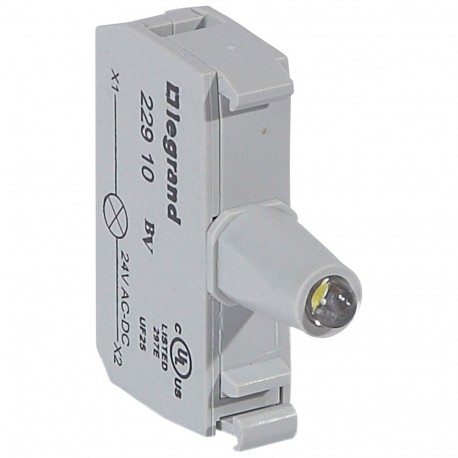

022910 LEGRAND BLOCK LED 24V WHITE
022910
022910
LEGRAND
5 Pcs.
BLOCK LED 24V WHITE
Osmoz electrical block - for illuminated head - white - 12-24 V~/=
Osmoz light head splice block - 12V to 24V - White
Automation > Lamp holder block for control circuit devices
ACCESSORIES CONTROL AND CONTROL PANELS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲- RoHS Compliant
- Pack (number of units)5
- Volume (dm3)0.229
- Weight (g)76.00
Product characteristics
For illuminated headsScrew terminals
- 12-24 V~/=
- White
General characteristics
Osmoz control and signalling units: electrical blocks- IP 20
- Conform to IEC 60947-5-1
| Feature Name | Feature Value |
|---|---|
| Connection type auxiliary circuit (EF006820) | Screw connection |
| Rated voltage Ue at AC 50 Hz (EF007029) | 10.8 V |
| Lamp type (EF002423) | LED |
| Type of fastening (EF002442) | Front fastening |
| With integrated diode (EF001400) | Yes |
| With integrated voltage decreasing resistor (EF001399) | Yes |
| Voltage type for actuating (EF008242) | AC/DC |
| Rated voltage Ue at AC 60 Hz (EF007030) | 10.8 V |
| Rated voltage Ue at DC (EF007031) | 10.8 V |
| Transformer integrated (EF001358) | No |
| Colour light source (EF001402) | White |
| Lamp holder (EF000048) | None |
| With light source (EF005905) | Yes |
