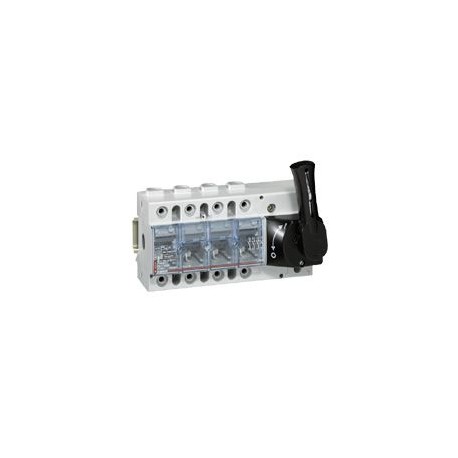

022553 LEGRAND SWITCH VISTOP 160A 4P MF
022553
022553
LEGRAND
1 Pcs.
Connectors > Switch disconnector
INDUSTRIAL CONTACTORS / SWITCHES
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Designed for secure power isolation, this Legrand 022553 switch vistop acts as a reliable control point within industrial low-voltage distribution assemblies. Technicians deploy these multi-pole devices to disconnect specific machinery or system sections during maintenance cycles.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Version as safety switch (EF006985): No
- Version as maintenance-/service switch (EF006986): Yes
- Max. rated operation voltage Ue AC (EF007355): 690 V
- Version as main switch (EF006981): Yes
- Interlockable (EF006281): Yes
- Rated short-time withstand current lcw (EF007050): 3.5 kA
- Voltage release optional (EF007491): No
- Device construction (EF008240): Built-in device fixed built-in technique
- Number of poles (EF001391): 4
- Type of electrical connection of main circuit (EF006819): Screw connection
- Version as emergency stop installation (EF006959): No
- Motor drive integrated (EF006697): No
- Version as reversing switch (EF009408): No
- Type of control element (EF006976): Toggle
- Conditioned rated short-circuit current Iq (EF001444): 12 kA
- Rated operation power at AC-23, 400 V (EF007027): 88 kW
More info
▲| Version as main switch | Yes |
|---|---|
| Version as maintenance-/service switch | Yes |
| Version as safety switch | No |
| Version as emergency stop installation | No |
| Version as reversing switch | No |
| Max. rated operation voltage Ue AC | 690 V |
| Rated operating voltage | 690-690 V |
| Rated permanent current Iu | 160 A |
| Rated permanent current at AC-21, 400 V | 160 A |
| Rated short-time withstand current lcw | 3.5 kA |
| Rated operation power at AC-23, 400 V | 88 kW |
| Switching power at 400 V | 88 kW |
| Conditioned rated short-circuit current Iq | 12 kA |
| Number of poles | 4 |
| Number of auxiliary contacts as normally closed contact | 0 |
| Number of auxiliary contacts as normally open contact | 0 |
| Number of auxiliary contacts as change-over contact | 0 |
|---|---|
| Motor drive optional | No |
| Motor drive integrated | No |
| Voltage release optional | No |
| Device construction | Built-in device fixed built-in technique |
| Suitable for floor mounting | No |
| Suitable for front mounting 4-hole | Yes |
| Suitable for front mounting centre | Yes |
| Suitable for distribution board installation | Yes |
| Suitable for intermediate mounting | No |
| Colour control element | Black |
| Type of control element | Wing knob |
| Interlockable | Yes |
| Type of electrical connection of main circuit | Screw connection |
| Degree of protection (IP), front side | IP2X |
