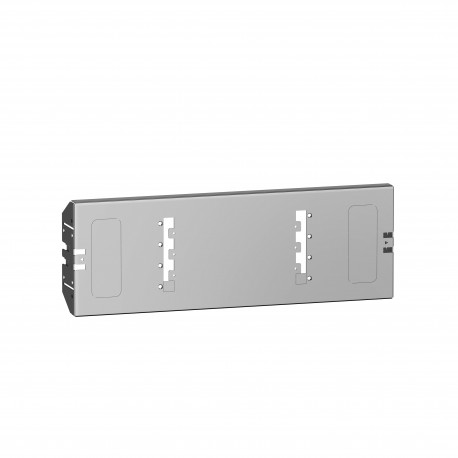

LEGRAND 021309 021309 LEGRAND 250HP HORIZONT EXTR SECC BOARD View larger
Images are for illustrative purposes only. Please refer to data sheet for details

021309 LEGRAND 250HP HORIZONT EXTR SECC BOARD

021309

021309

LEGRAND

1 Pcs.

250HP HORIZONT EXTR SECC BOARD Fixed mounting plate XL³ 4000 - for 1 DPX³ 250 HP removable or sectionable version - pos. horizontal - 24 mód XL³ 4000 Fixed Mounting Plate for DPX³ 250 HP ext/secc - horizontal - 24mod

Automation > Mounting plate for distribution board
XL3 800-4000 ENERGY DISTRIBUTION CABINETS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A Legrand 021309 galvanized steel floor standing board section supports the structural framework of modular switchboards and cable management assemblies in industrial power distribution rooms. Structural enclosure profiles and boards provide the mechanical support necessary for heavy electrical distribution architectures.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Height (EF000040): 200 mm
  • Material (EF002169): Steel
  • Perforated (EF000115): Yes
  • Surface protection (EF000139): Galvanised
  • Width (EF000008): 600 mm

More info

▲

Product features

Mounting plate for DPX³ 250 HP with front terminals - Direct fixation on functional uprights - For devices in horizontal position - For 1 DPX³ 250 HP removable or sectionable version - 24 modules

General features

XL³ 4000 - equipment for modular mounting Vistop up to 160 A, DPX³ 160, DPX³ 125 HP, DPX³ 250 HP, DPX³ 250 and DPX-IS 250 on symmetrical rail

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
