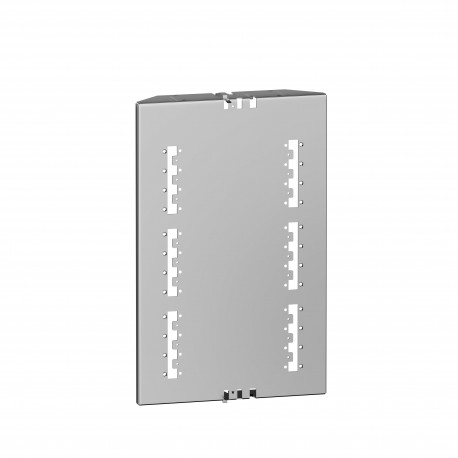

LEGRAND 021306 021306 LEGRAND 250HP VERTICAL EXTR SECC PLATE View larger
Images are for illustrative purposes only. Please refer to data sheet for details

021306 LEGRAND 250HP VERTICAL EXTR SECC PLATE

021306

021306

LEGRAND

1 Pcs.

250HP VERTICAL EXTR SECC PLATE Fixed mounting plate XL³ 4000 - for 1 to 3 DPX³ 250 HP view removable or for 1 to 2 DPX³ 250 HP view sectionable - pos. vertical - 24 mód Fixed mounting plate XL³ 4000 for DPX³ 250 HP - extr/secc - vertical - 24 mode.

Automation > Mounting plate for distribution board
XL3 800-4000 ENERGY DISTRIBUTION CABINETS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Legrand 021306 vertical extrusion plate offers structured support for mounting high-capacity circuit breakers and distribution devices within enclosures. Such modular plates streamline the layout of complex electrical switchboards.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Height (EF000040): 400 mm
  • Material (EF002169): Steel
  • Perforated (EF000115): Yes
  • Surface protection (EF000139): Galvanised
  • Width (EF000008): 600 mm

More info

▲

Product features

Mounting plate for DPX³ 250 HP with front terminals - Direct attachment on functional uprights - For devices in vertical position - For 1 to 3 DPX³ 250 HP see removable or for 1 to 2 DPX³ 250 HP see sectionable - 24 modules

General features

XL³ 4000 - equipment for modular mounting Vistop up to 160 A, DPX³ 160, DPX³ 125 HP, DPX³ 250 HP, DPX³ 250 and DPX-IS 250 on symmetrical rail
