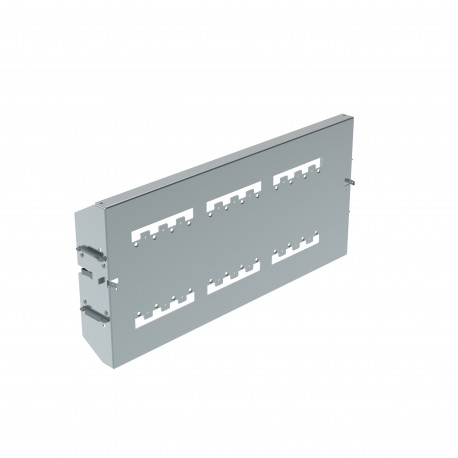

LEGRAND 021305 021305 LEGRAND 250HP VERT MAND ROT MOT BOARD View larger
Images are for illustrative purposes only. Please refer to data sheet for details

021305 LEGRAND 250HP VERT MAND ROT MOT BOARD

021305

021305

LEGRAND

1 Pcs.

250HP VERT MAND ROT MOT BOARD XL³ 4000 fixed mounting plate - for 1 to 3 DPX³ 250 HP with rotary control or motor control - pos. vertical - 24 modules Fixed mounting plate XL³ 4000 for DPX³ 250 HP - vertical - 24mod - rot control

Automation > Mounting plate for distribution board
XL3 800-4000 ENERGY DISTRIBUTION CABINETS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A 021305 Legrand 250HP vert mand rot mot board functions as a specialized internal equipment carrier within modular distribution frameworks. Such adapter plates allow engineers to cleanly mount motor starters, rotary handles, and heavy switching devices in a vertical configuration.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Height (EF000040): 300 mm
  • Material (EF002169): Steel
  • Perforated (EF000115): Yes
  • Surface protection (EF000139): Galvanised
  • Width (EF000008): 600 mm

More info

▲

Product features

Mounting plate for DPX³ 250 HP with front terminals - Direct attachment on functional uprights - For upright devices - For 1 to 3 DPX³ 250 HP with rotary control or motor drive - 24 modules

General features

XL³ 4000 - equipment for modular mounting Vistop up to 160 A, DPX³ 160, DPX³ 125 HP, DPX³ 250 HP, DPX³ 250 and DPX-IS 250 on symmetrical rail
