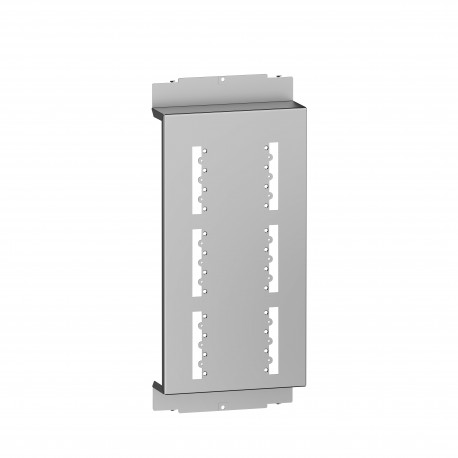

LEGRAND 021304 021304 LEGRAND DPX3 250HP FLAT BOARD View larger
Images are for illustrative purposes only. Please refer to data sheet for details

021304 LEGRAND DPX3 250HP FLAT BOARD

021304

021304

LEGRAND

1 Pcs.

DPX3 250HP FLAT BOARD Fixed mounting plate XL³ 4000 - for 1 to 3 DPX³ 250 HP - pos. vertical - 24 modules Fixed mounting plate XL³ 4000 for DPX³ 250 HP - vertical - 24mod

Automation > Mounting plate for distribution board
XL3 800-4000 ENERGY DISTRIBUTION CABINETS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Equipped to handle specialized circuit breaker configurations, the Legrand 021304 dpx3 250hp flat board acts as an internal mounting platform within distribution assemblies. Panel builders use these boards to align molded case breakers and power distribution blocks securely. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Height (EF000040): 300 mm
  • Material (EF002169): Steel
  • Perforated (EF000115): Yes
  • Surface protection (EF000139): Galvanised
  • Width (EF000008): 600 mm

More info

▲

Product features

Mounting plate for DPX³ 250 HP with front terminals - Direct attachment on functional uprights - For upright devices - For 1 to 3 DPX³ 250 HP - 24 modules

General features

XL³ 4000 - equipment for modular mounting Vistop up to 160 A, DPX³ 160, DPX³ 125 HP, DPX³ 250 HP, DPX³ 250 and DPX-IS 250 on symmetrical rail
