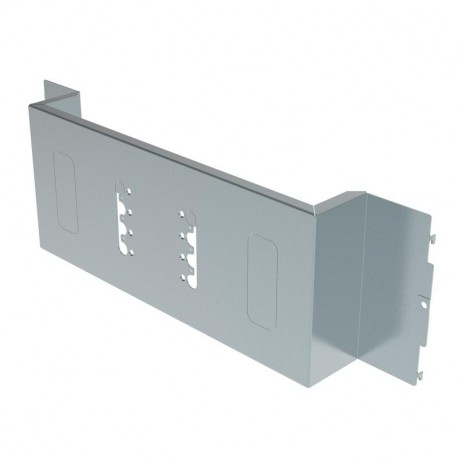

LEGRAND 021301 021301 LEGRAND DPX3 125HP FIXED HORIZONT BOARD View larger
Images are for illustrative purposes only. Please refer to data sheet for details

021301 LEGRAND DPX3 125HP FIXED HORIZONT BOARD

021301

021301

LEGRAND

1 Pcs.

DPX3 125HP FIXED HORIZONT BOARD Fixed mounting plate XL³ 4000 - for 1 DPX³ 125 HP - pos. horizontal - 24 modules XL³ 4000 Fixed Mounting Plate for 1 DPX³ 125 HP - pos. Horizontal - 24mod

Automation > Mounting plate for distribution board
XL3 800-4000 ENERGY DISTRIBUTION CABINETS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

021301 LEGRAND DPX3 125HP FIXED HORIZONT BOARD acts as a structured horizontal mounting plate designed to support fixed circuit breakers and distribution components within modular switchboards. These punched plates allow secure mechanical installation and correct terminal alignment.

Specific pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Height (EF000040): 200 mm
  • Material (EF002169): Steel
  • Perforated (EF000115): Yes
  • Surface protection (EF000139): Galvanised
  • Width (EF000008): 600 mm

More info

▲

Product features

Mounting plate for DPX³ 125 HP with front terminals - Direct attachment on functional studs - For devices in horizontal position - For 1 DPX³ 125 HP - 24 modules

General features

XL³ 4000 - equipment for modular mounting Vistop up to 160 A, DPX³ 160, DPX³ 125 HP, DPX³ 250 HP, DPX³ 250 and DPX-IS 250 on symmetrical rail
