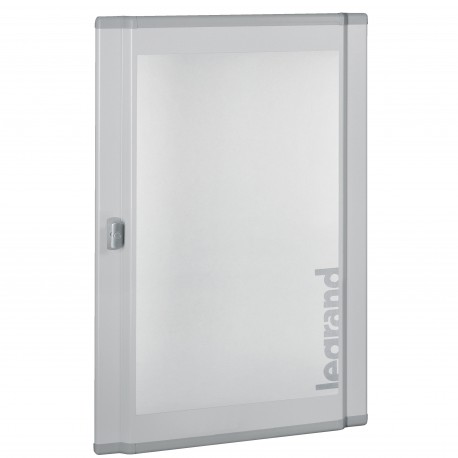

LEGRAND 021266 021266 LEGRAND XL3 DOOR PLAN CRIS. 1000X850 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

021266 LEGRAND XL3 DOOR PLAN CRIS. 1000X850

021266

021266

LEGRAND

1 Pcs.

XL3 DOOR PLAN CRIS. 1000X850 Door glass, profiled XL3 800 - for case alt.1050/an.910 Profiled glass door XL³ 800 for H1050mm - L910mm box

Automation > Door/operating panel (switchgear cabinet)
XL3 800-4000 ENERGY DISTRIBUTION CABINETS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

021266 LEGRAND XL3 DOOR PLAN CRIS. 1000X850 functions as a glazed compartment door designed for Legrand XL3 modular switchboard enclosures. Transparent plan and control doors offer clear visibility of internal metering equipment while enclosing sensitive electrical architectures securely. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Height (EF000040): 975 mm
  • Model (EF000010): Compartment door
  • Degree of protection (IP) (EF005474): IP40
  • Version as glazed door (EF006966): Yes
  • Material (EF002169): Steel
  • Surface finishing (EF006569): Lacquered
  • Depth (EF000049): 60 mm
  • Colour (EF000007): Grey
  • Width (EF000008): 1000 mm
  • EMC-version (EF001062): No

More info

▲

Product features

Doors - Supplied with grip to the bowler interchangeable, to be ordered separately - 2 locking points up and down - Distance-top cubrebornas/metal gate 67 mm - glass: 63 mm - box height 1050 mm; width 910 mm

General characteristics

XL3 800 - distribution boxes and switchgear side panels, doors - IP 43 - IK 08 set and door - IP 40 - IK 08 with door IP 30 - IK 07 without door - to- Cell metal - Suitable for appliances up to 800 (700 if IP top 30) - fire Resistance according to IEC 60695-2-11: 750 °C/5 s - To install in the ERP - Capacity 24 and 36 modules per row - RAL 7035 (socket RAL 7004) - Supplied flat with studs functional fixed on the bottom plate cable entry cut-out accessories and of association (horizontal and vertical)
