View larger
Images are for illustrative purposes only. Please refer to data sheet for details

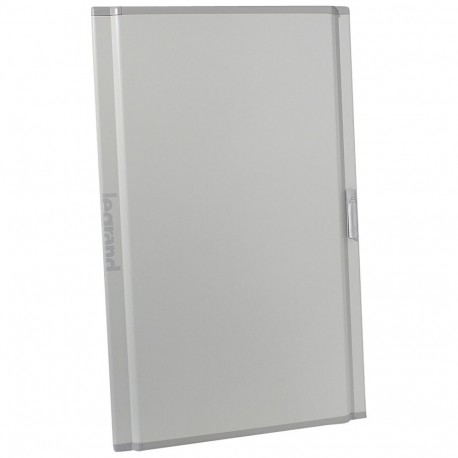

021258 LEGRAND XL3 DOOR METAL 1400X850
021258
021258
LEGRAND
1 Pcs.
XL3 DOOR METAL 1400X850
Metal door profiled XL3 800 width. 910 mm - for cabinet ref. 204 08
XL³ 800 profiled metal door for cabinet ref. 0 204 08 - L910mm
Automation > Door/operating panel (switchgear cabinet)
XL3 800-4000 ENERGY DISTRIBUTION CABINETS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Product features
Doors - Supplied with hand grips with a bowler hat, interchangeable ordered separately - Away lid cubrebornas/metal gate 67 mm - glass: 63 mm - Metal - box height: 1550 mm - box width: 910 mmGeneral characteristics
XL3 800 - cabinets - IP 43 - IK 08 set and door - IP 40 - IK 08 with door IP 30 - IK 07 without door - Facing metal. Suitable for appliances up to 800 A - fire Resistance according to IEC 60695-2-11: 750 °C/5 s - To install in the ERP - Capacity 24 and 36 modules per row - RAL 7035 - Supplied flat with studs functional fixed on the bottom plate cable entry cut-out accessories and of association (horizontal and vertical)| Feature Name | Feature Value |
|---|---|
| Height (EF000040) | 975 mm |
| Model (EF000010) | Compartment door |
| Degree of protection (IP) (EF005474) | IP40 |
| Version as glazed door (EF006966) | No |
| Material (EF002169) | Steel |
| Surface finishing (EF006569) | Lacquered |
| Depth (EF000049) | 60 mm |
| Colour (EF000007) | Grey |
| Version as door for disconnecting switch interlocking (EF006967) | No |
| Width (EF000008) | 1400 mm |
| EMC-version (EF001062) | No |
