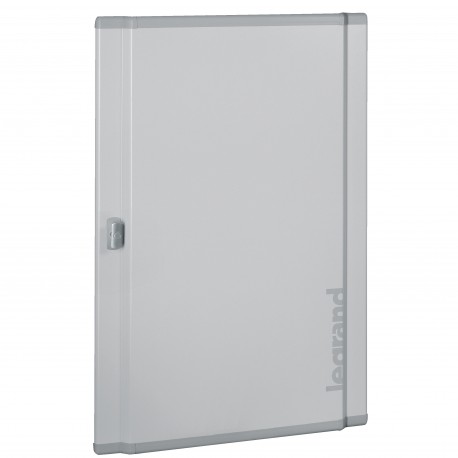

021256 LEGRAND XL3 DOOR FLAT MET. 1000X850
021256
021256
LEGRAND
1 Pcs.
XL3 DOOR FLAT MET. 1000X850
Metal door profiled XL3 800 - for case alt.1050/an.910
Profiled metal door XL³ 800 for H1050mm - L910mm box
Automation > Door/operating panel (switchgear cabinet)
XL3 800-4000 ENERGY DISTRIBUTION CABINETS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Product features
Doors - Supplied with grip to the bowler interchangeable, to be ordered separately - 2 locking points up and down - Distance-top cubrebornas/metal gate 67 mm - glass: 63 mm - box height 1050 mm; width 910 mmGeneral characteristics
XL3 800 - distribution boxes and switchgear side panels, doors - IP 43 - IK 08 set and door - IP 40 - IK 08 with door IP 30 - IK 07 without door - to- Cell metal - Suitable for appliances up to 800 (700 if IP top 30) - fire Resistance according to IEC 60695-2-11: 750 °C/5 s - To install in the ERP - Capacity 24 and 36 modules per row - RAL 7035 (socket RAL 7004) - Supplied flat with studs functional fixed on the bottom plate cable entry cut-out accessories and of association (horizontal and vertical)| Feature Name | Feature Value |
|---|---|
| Height (EF000040) | 975 mm |
| Model (EF000010) | Compartment door |
| Degree of protection (IP) (EF005474) | IP40 |
| Version as glazed door (EF006966) | No |
| Material (EF002169) | Steel |
| Surface finishing (EF006569) | Lacquered |
| Depth (EF000049) | 60 mm |
| Colour (EF000007) | Grey |
| Version as door for disconnecting switch interlocking (EF006967) | No |
| Width (EF000008) | 1000 mm |
| EMC-version (EF001062) | No |
