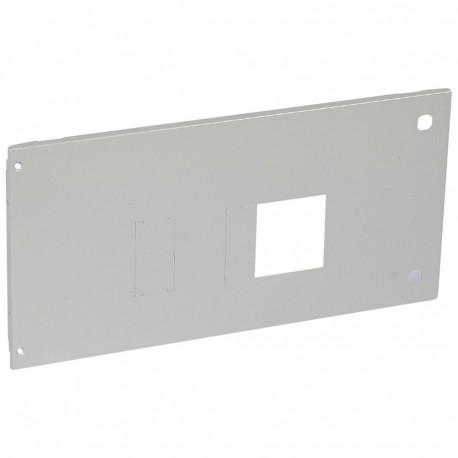

LEGRAND 021217 021217 LEGRAND CAP MET. DPX 630 EXT HOR.L600 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

021217 LEGRAND CAP MET. DPX 630 EXT HOR.L600

021217

021217

LEGRAND

1 Pcs.

CAP MET. DPX 630 EXT HOR.L600 Metal faceplate XL³ 4000 - 1 DPX 630 plug-in - horizontal - hinges and locks Metal terminal cover XL³ 4000 - 1 DPX³ 630 with or without removable differential

Automation > Front plate (switchgear cabinet)
XL3 800-4000 ENERGY DISTRIBUTION CABINETS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Legrand part number 021217 is a metallic end cap and cover designed for extended horizontal DPX 630 circuit breaker configurations in XL3 enclosures. Protective metallic caps are deployed in industrial power distribution panels to shield busbar connections and breaker terminals. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Height (EF000040): 300 mm
  • Material (EF002169): Steel
  • Surface finishing (EF006569): Powder coated
  • Suitable for enclosure building width (EF000326): 725 mm
  • Width (EF000008): 600 mm
  • Suitable for enclosure building height (EF009583): 2200 mm

More info

▲
  • Pack (number of units)1
  • Volume (dm3)9.00
  • Weight (g)2 199.00
Product characteristics
Metal faceplates for plug-in devices
  • Faceplates with hinges and lock
Devices in horizontal position
  • For device with or without elcbs
General characteristics
Equipment for XL³ 4000 - for mounting on adjustable plates: DPX³ 630 plug-in, draw-out version or automatic transfer switches
  • Adjustable plates are used for front terminal/rear terminal connection and mounting of motor-driven or rotary handles
