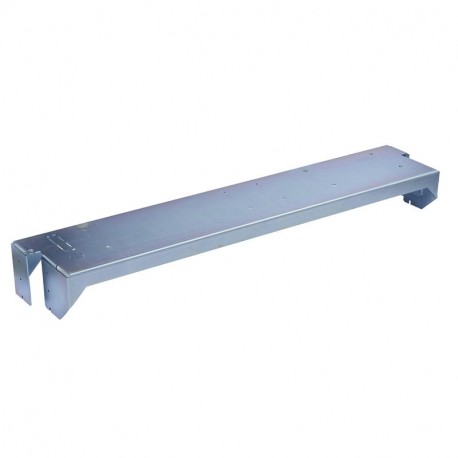

LEGRAND 021138 021138 LEGRAND XL3 PLATE DMX3 FIXED T3 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

021138 LEGRAND XL3 PLATE DMX3 FIXED T3

021138

021138

LEGRAND

1 Pcs.

XL3 PLATE DMX3 FIXED T3 Fixing plate - for mounting DMX³ 6300 3P/4P fixed version in XL³ 6300 enclosure Fixed 3P/4P DMX³ 6300 clamping device in XL³ 6300 cabinet

Automation > Component for installation (switchgear cabinet)
XL3 800-4000 ENERGY DISTRIBUTION CABINETS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Legrand 021138 XL3 plate DMX3 fixed T3 provides a sturdy mounting base specifically engineered to secure fixed circuit breaker units inside large distribution switchboards. Heavy-duty mounting plates ensure rigid mechanical alignment and safe compartmental separation for high-current power devices.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Material (EF002169): Metal
  • Suitable for enclosure building width (EF000326): 1425 mm
  • Suitable for enclosure building height (EF009583): 2200 mm

More info

▲
  • Pack (number of units)1
  • Volume (dm3)62.594
  • Weight (g)13 200.00
Product characteristics
Fixing devices for DMX³ 6300
Fixing plates
  • For 1 DMX³ 6300 3P/4P fixed version
General characteristics
Distribution enclosures XL³ 6300
  • IP 30 - IK 07
  • Consist of the combination of a "roof-base" assembly, structural uprights, rear and side panels RAL 7035, plinths RAL 7004
  • Height 2200 mm, usable faceplate height 2000 mm
