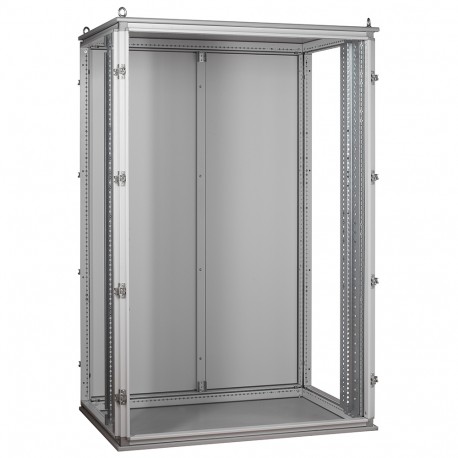

LEGRAND 021136 021136 LEGRAND XL3 6300 STILES BUILDING. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

021136 LEGRAND XL3 6300 STILES BUILDING.

021136

021136

LEGRAND

1 Pcs.

XL3 6300 STILES BUILDING. Set of 4 uprights for XL³ 6300 enclosures Frame upright (x 4) for XL³ 6300 cabinet

Automation > Component for installation (switchgear cabinet)
XL3 800-4000 ENERGY DISTRIBUTION CABINETS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Legrand XL3 6300 stiles building components, such as part number 021136, form the structural vertical framework used to construct robust, large-scale modular distribution enclosures. These structural stiles provide the rigid backbone required to support heavy electrical equipment arrays. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Height (EF000040): 2200 mm
  • Material (EF002169): Metal
  • Colour (EF000007): Grey
  • RAL-number (EF000116): 7035

More info

▲
  • Pack (number of units)1
  • Volume (dm3)45.248
  • Weight (g)29 800.00
Product characteristics
Enclosures modular metal
Structural uprights
  • Fit onto the "roof-base" assembly
  • Take the side and rear panels
  • Set of 4 uprights
General characteristics
Distribution enclosures XL³ 6300
  • IP 30 - IK 07
  • Consist of the combination of a "roof-base" assembly, structural uprights, rear and side panels RAL 7035, plinths RAL 7004
  • Height 2200 mm, usable faceplate height 2000 mm
