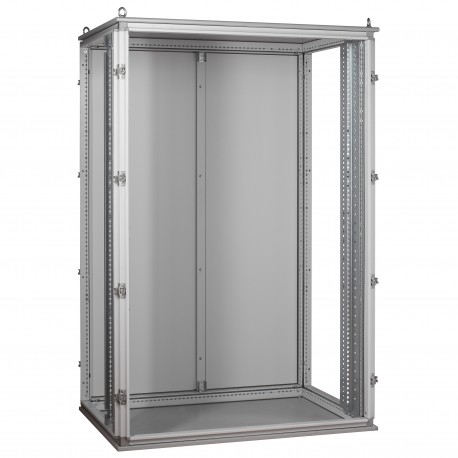

LEGRAND 021135 021135 LEGRAND XL3 BASE+ROOF ANCH1425 PRF975 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

021135 LEGRAND XL3 BASE+ROOF ANCH1425 PRF975

021135

021135

LEGRAND

1 Pcs.

XL3 BASE+ROOF ANCH1425 PRF975 Roof base for XL³ 6300 enclosure - D. 975 x W. 1300 mm Ceiling - base for XL³ 6300 cabinet - 1425x975mm

Automation > Top-/floor cover element (enclosure/switchgear cabinet)
XL3 800-4000 ENERGY DISTRIBUTION CABINETS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A Legrand 021135 base and roof anchoring element reinforces the structural stability of large modular switchboard frameworks and distribution centers. Heavy-duty framing accessories are integrated into multi-bay enclosure setups to withstand mechanical stress and ensure proper alignment during installation.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Suitable for outdoor set-up: No
  • Height: 150 mm
  • Material: Steel
  • Surface finishing: Powder coated
  • Suitable for bottom planking: Yes
  • Suitable for roof planking: Yes
  • With de-aeration: No
  • Depth: 975 mm
  • Colour: Grey
  • Suitable for enclosure building width: 1425 mm
  • RAL-number: 7029
  • With cable entry: Yes
  • Suitable for enclosure building depth: 975 mm
  • Width: 1425 mm

More info

▲
  • Pack (number of units)1
  • Volume (dm3)432.00
  • Weight (g)74 649.00
Product characteristics
Enclosures modular metal
Roof-base for enclosure
  • Fitted with cable entry plates
  • Take the structural uprights
  • Depth : 975 mm
  • Width external : 1425 mm
  • Width usable : 1300 mm
General characteristics
Distribution enclosures XL³ 6300
  • IP 30 - IK 07
  • Consist of the combination of a "roof-base" assembly, structural uprights, rear and side panels RAL 7035, plinths RAL 7004
  • Height 2200 mm, usable faceplate height 2000 mm
