View larger
Images are for illustrative purposes only. Please refer to data sheet for details

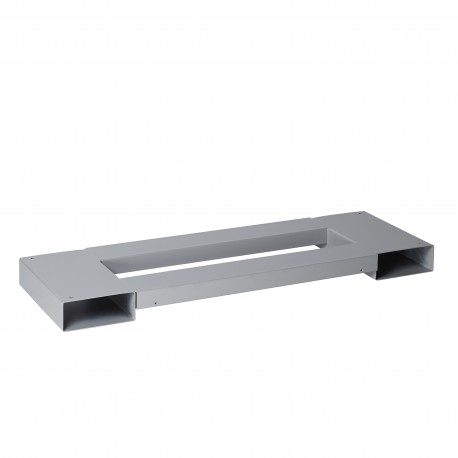

021130 LEGRAND XL3 ZOCALO 1425X475
021130
021130
LEGRAND
1 Pcs.
XL3 ZOCALO 1425X475
Plinth for XL³ 6300 enclosure - H. 100 x D. 475 x W. 1425 mm
Socket for XL³ 6300 H100mm - 1425x475mm cabinet
Automation > Base/base element (switchgear cabinet)
XL3 800-4000 ENERGY DISTRIBUTION CABINETS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲- Pack (number of units)1
- Volume (dm3)85.922
- Weight (g)33 300.00
Product characteristics
Enclosures modular metalPlinths that can be placed side by side
- Height : 100 mm
- Depth : 475 mm
- Width : 1425 mm
General characteristics
Distribution enclosures XL³ 6300- IP 30 - IK 07
- Consist of the combination of a "roof-base" assembly, structural uprights, rear and side panels RAL 7035, plinths RAL 7004
- Height 2200 mm, usable faceplate height 2000 mm
| Feature Name | Feature Value |
|---|---|
| Height (EF000040) | 100 mm |
| Model (EF000010) | Base complete |
| Material (EF002169) | Steel |
| Suitable for cable patch (EF007251) | No |
| Suitable for aeration/de-aeration (EF000324) | No |
| Depth (EF000049) | 475 mm |
| Suitable for enclosure building width (EF000326) | 1425 mm |
| Colour (EF000007) | Grey |
| Suitable for enclosure building depth (EF000327) | 475 mm |
| Width (EF000008) | 1425 mm |
