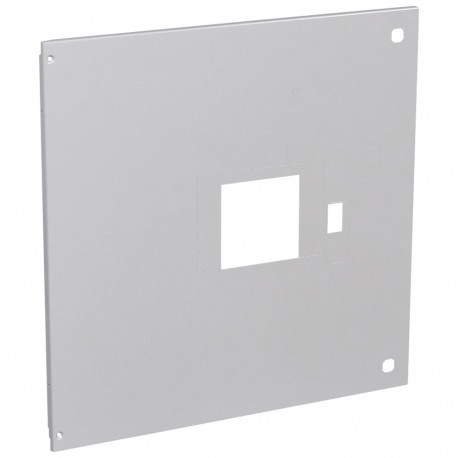

LEGRAND 021116 021116 LEGRAND XL3 TAP DPX1600+MOT. SECT.L600 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

021116 LEGRAND XL3 TAP DPX1600+MOT. SECT.L600

021116

021116

LEGRAND

1 Pcs.

XL3 TAP DPX1600+MOT. SECT.L600 Metal faceplate XL³ 4000-DPX1600 draw out with rotary handle-vert-24 modules Metal terminal cover covers XL³ 4000 - DPX³ 1600 with knob - vertical sectional

Automation > Front plate (switchgear cabinet)
XL3 800-4000 ENERGY DISTRIBUTION CABINETS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
  • Pack (number of units)1
  • Volume (dm3)19.00
  • Weight (g)3 980.00
Product characteristics
Metal faceplates for draw-out version
  • Faceplates with hinges and lock
Devices in vertical position
  • 24 modules
  • For 1 DPX³ 1600 with motor-driven or rotary handle
General characteristics
Equipment for XL³ 4000 - for mounting on adjustable plates: DPX³ 1600 draw-out version and automatic transfer switches
  • Adjustable plates are used for front terminal/rear terminal connection and mounting of motor-driven or rotary handles

ETIM for 021116 Cabinets and enclosures (EC000456)
Feature Name Feature Value
Height (EF000040) 400 mm
Material (EF002169) Steel
Surface finishing (EF006569) Powder coated
Suitable for enclosure building width (EF000326) 725 mm
Width (EF000008) 600 mm
Suitable for enclosure building height (EF009583) 2200 mm
