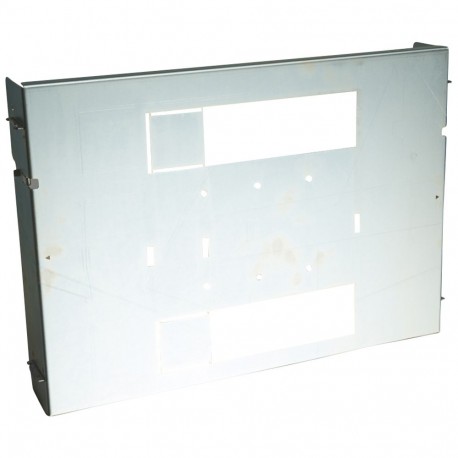

LEGRAND 021106 021106 LEGRAND XL3 PLAC DPX1600 SET PAIR VERT View larger
Images are for illustrative purposes only. Please refer to data sheet for details

021106 LEGRAND XL3 PLAC DPX1600 SET PAIR VERT

021106

021106

LEGRAND

1 Pcs.

XL3 PLAC DPX1600 SET PAIR VERT Plate XL³ 800/4000 - For 1 DPX-IS 1600 or 1 DPX 1600 rear terminals - 24 modules Fixed mounting plate XL³ 800/4000 - DPX-IS 1600 - vertical position - 24mod

Automation > Mounting plate for distribution board
XL3 800-4000 ENERGY DISTRIBUTION CABINETS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A Legrand XL3 PLAC DPX1600 SET PAIR VERT serves as an internal structural assembly designed to securely mount heavy-duty circuit breakers and auxiliary hardware within large electrical enclosures. Panel builders use such equipment to establish organized, modular configurations that support safe power distribution and maintenance operations.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Height (EF000040): 400 mm
  • Material (EF002169): Steel
  • Perforated (EF000115): Yes
  • Surface protection (EF000139): Lacquered
  • Width (EF000008): 600 mm

More info

▲
  • Pack (number of units)1
  • Volume (dm3)20.00
  • Weight (g)4 737.00
Product characteristics
Fixing fixed version devices
Adjustable plates for devices in vertical position
  • 24 modules
  • For 1 DPX-IS 1600 or 1 DPX 1600 rear terminals
General characteristics
Equipment for XL³ 4000 - for mounting on adjustable plates: DPX³ 1600 fixed version
  • Adjustable plates are used for front terminal/rear terminal connection and mounting of motor-driven or rotary handles
