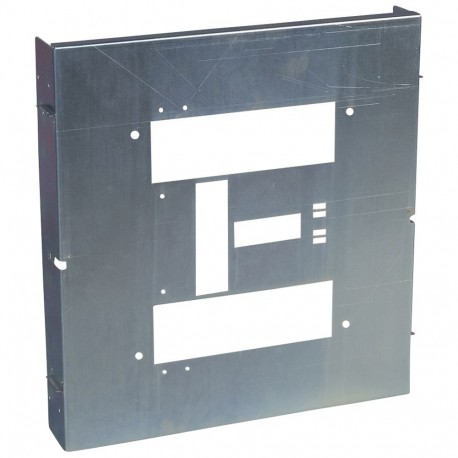

LEGRAND 021105 021105 LEGRAND XL3 P. REG. DPX 1600 SECT VERT View larger
Images are for illustrative purposes only. Please refer to data sheet for details

021105 LEGRAND XL3 P. REG. DPX 1600 SECT VERT

021105

021105

LEGRAND

1 Pcs.

XL3 P. REG. DPX 1600 SECT VERT Adjustable plate XL³ 4000 - For 1 DPX 1600 - vertical - 24 modules Adjustable plate XL³ 4000 - 1 DPX³ 1600 sectionable - horizontal

Automation > Mounting plate for distribution board
XL3 800-4000 ENERGY DISTRIBUTION CABINETS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A Legrand XL3 P. REG. DPX 1600 SECT VERT acts as a dedicated mounting and segregation component inside large distribution panels to isolate and support heavy circuit breaker equipment. These hardware additions maintain electrical safety standards and organize complex modular setups within industrial switchboards.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Height (EF000040): 400 mm
  • Material (EF002169): Steel
  • Perforated (EF000115): Yes
  • Surface protection (EF000139): Lacquered
  • Width (EF000008): 600 mm

More info

▲
  • Pack (number of units)1
  • Volume (dm3)34.00
  • Weight (g)6 971.00
Product characteristics
Fixing draw-out version DPX³ 1600, with front or rear terminals
Adjustable plates for devices in vertical position
  • 24 modules
  • For 1 DPX³ 1600
General characteristics
Equipment for XL³ 4000 - for mounting on adjustable plates: DPX³ 1600 draw-out version and automatic transfer switches
  • Adjustable plates are used for front terminal/rear terminal connection and mounting of motor-driven or rotary handles
