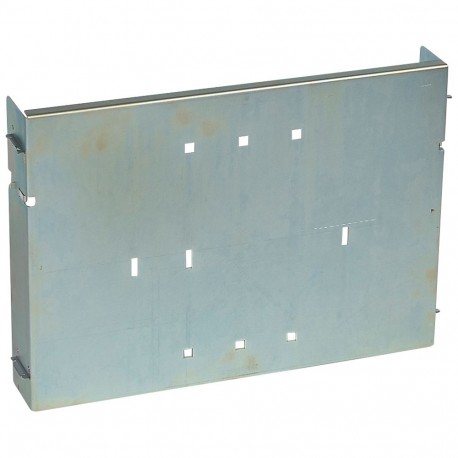

LEGRAND 021104 021104 LEGRAND XL3 P. REG. DPX 1600 FIXED VERT View larger
Images are for illustrative purposes only. Please refer to data sheet for details

021104 LEGRAND XL3 P. REG. DPX 1600 FIXED VERT

021104

021104

LEGRAND

1 Pcs.

XL3 P. REG. DPX 1600 FIXED VERT Adjustable plate XL³ 4000 - 1 DPX 1600 draw out with front terminals-vert-24 modules XL³ 800/4000 Fixed Mounting Plate - 1 DPX-IS 1600 Previous Connection

Automation > Mounting plate for distribution board
XL3 800-4000 ENERGY DISTRIBUTION CABINETS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

021104 LEGRAND XL3 P. REG. DPX 1600 FIXED VERT provides structural support and modular mounting capability for heavy-duty circuit breakers within large electrical distribution switchboards.

Vertical fixed mounting plates ensure correct physical alignment and secure anchoring of heavy modular switching equipment in industrial power architectures.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Height (EF000040): 400 mm
  • Material (EF002169): Steel
  • Perforated (EF000115): Yes
  • Surface protection (EF000139): Lacquered
  • Width (EF000008): 600 mm

More info

▲
  • Pack (number of units)1
  • Volume (dm3)32.916
  • Weight (g)5 215.00
Product characteristics
Fixing fixed version devices
Adjustable plates for devices in vertical position
  • 24 modules
  • For 1 DPX³ 1600 with front terminals
General characteristics
Equipment for XL³ 4000 - for mounting on adjustable plates: DPX³ 1600 fixed version
  • Adjustable plates are used for front terminal/rear terminal connection and mounting of motor-driven or rotary handles
