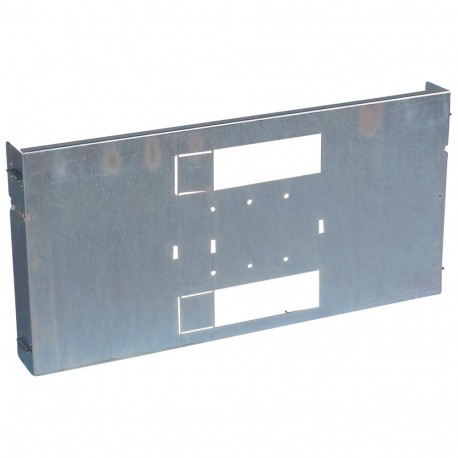

021103 LEGRAND XL3 P. REG. DPX 1600 FIXED V.
021103
021103
LEGRAND
1 Pcs.
Automation > Mounting plate for distribution board
XL3 800-4000 ENERGY DISTRIBUTION CABINETS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A Legrand xl3 p. reg. dpx 1600 fixed v., part number 021103, is a specialized modular internal chassis component used within XL3 distribution enclosures to support and isolate high-capacity circuit breaker equipment. Regulating plates and mounting frameworks ensure proper physical alignment and structural stability for heavy switchgear.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Height (EF000040): 400 mm
- Material (EF002169): Steel
- Perforated (EF000115): Yes
- Surface protection (EF000139): Lacquered
- Width (EF000008): 850 mm
More info
▲- Pack (number of units)1
- Volume (dm3)33.00
- Weight (g)6 355.00
Adjustable plates for devices in vertical position
- 36 modules
- For 1 DPX-IS 1600 or 1 DPX 1600 rear terminals
- Adjustable plates are used for front terminal/rear terminal connection and mounting of motor-driven or rotary handles
