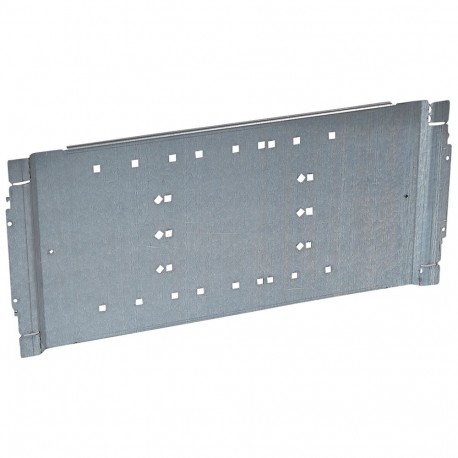

LEGRAND 021102 021102 LEGRAND XL3 PLATE DPX 1600 L850 VERT. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

021102 LEGRAND XL3 PLATE DPX 1600 L850 VERT.

021102

021102

LEGRAND

1 Pcs.

XL3 PLATE DPX 1600 L850 VERT. Plate XL³ 800/4000 - for 1 DPX IS 1600 or DPX 1600 front terminals - 36 modules XL³ 800/4000 Fixed Mounting Plate for 1 DPX-IS 1600 - 36mod

Automation > Mounting plate for distribution board
XL3 800-4000 ENERGY DISTRIBUTION CABINETS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

021102 LEGRAND XL3 PLATE DPX 1600 L850 VERT. serves as a vertical mounting support engineered for integrating large DPX 1600 circuit breakers into Legrand distribution assemblies.

Specialized vertical mounting plates ensure proper mechanical alignment and stable load-bearing capacity for heavy protective devices.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Height (EF000040): 400 mm
  • Material (EF002169): Steel
  • Perforated (EF000115): Yes
  • Surface protection (EF000139): Lacquered
  • Width (EF000008): 850 mm

More info

▲
  • Pack (number of units)1
  • Volume (dm3)14.00
  • Weight (g)8 549.00
Product characteristics
Fixing fixed version devices
Fixed plate for devices in horizontal or vertical position
  • 36 modules
  • For 1 DPX IS 1600 or 1 DPX³ 1600 front terminal
General characteristics
Equipment for XL³ 4000 - for mounting on adjustable plates: DPX³ 1600 fixed version
  • Adjustable plates are used for front terminal/rear terminal connection and mounting of motor-driven or rotary handles
