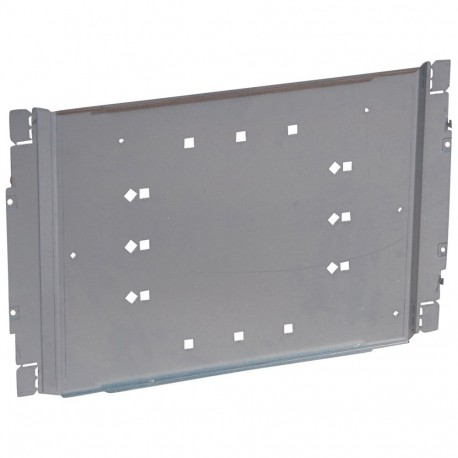

LEGRAND 021100 021100 LEGRAND XL3 PLATE DPX 1600 L600 VERT View larger
Images are for illustrative purposes only. Please refer to data sheet for details

021100 LEGRAND XL3 PLATE DPX 1600 L600 VERT

021100

021100

LEGRAND

1 Pcs.

XL3 PLATE DPX 1600 L600 VERT Plate XL³ 800/4000 - For 1 DPX-IS 1600 or DPX 1600 front terminals - 24 modules XL³ 800/4000 Fixed Mounting Plate for 1 DPX-IS 1600 - 24mod

Automation > Mounting plate for distribution board
XL3 800-4000 ENERGY DISTRIBUTION CABINETS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A Legrand 021100 equipment plate acts as an internal mounting accessory designed to properly align and secure heavy circuit breakers and protective switching devices inside modular distribution boards. Such plates allow engineers to cleanly segregate power apparatus and maintain safe operational clearances in large electrical panels. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Height (EF000040): 400 mm
  • Material (EF002169): Steel
  • Perforated (EF000115): Yes
  • Surface protection (EF000139): Lacquered
  • Width (EF000008): 600 mm

More info

▲
  • Pack (number of units)1
  • Volume (dm3)11.00
  • Weight (g)4 414.00
Product characteristics
Fixing fixed version devices
Fixed plate for devices in horizontal or vertical position
  • 24 modules
  • For 1 DPX-IS 1600 or 1 DPX 1600 front terminals
General characteristics
Equipment for XL³ 4000 - for mounting on adjustable plates: DPX³ 1600 fixed version
  • Adjustable plates are used for front terminal/rear terminal connection and mounting of motor-driven or rotary handles
