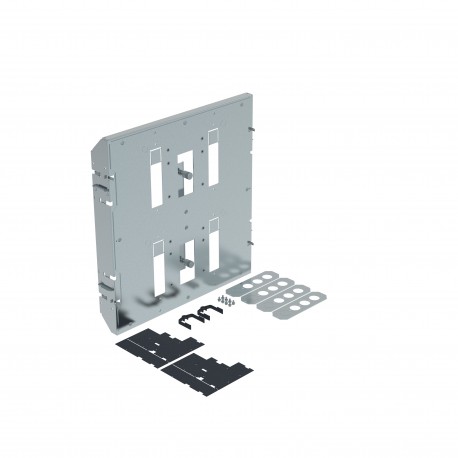

LEGRAND 021073 021073 LEGRAND XL3 4000 DPX3 630 INVES NETWORKS View larger
Images are for illustrative purposes only. Please refer to data sheet for details

021073 LEGRAND XL3 4000 DPX3 630 INVES NETWORKS

021073

021073

LEGRAND

1 Pcs.

XL3 4000 DPX3 630 INVES NETWORKS Fixing automatic transfer switch for XL³ S 4000 enclosures - for 2 DPX³ 630 in horizontal position XL³ 4000 - 2 DPX³ 630 clamping device grid inverter - horizontal

Automation > Front plate (switchgear cabinet)
XL3 800-4000 ENERGY DISTRIBUTION CABINETS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A Legrand XL3 4000 DPX3 630 INVES NETWORKS is an internal partitioning and mounting assembly designed to integrate heavy-duty circuit protection devices safely within modular enclosure lineups. Such hardware structures ensure proper device alignment and physical separation inside complex low-voltage switchboard configurations.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Height (EF000040): 565 mm
  • Material (EF002169): Steel
  • Suitable for enclosure building width (EF000326): 725 mm
  • Width (EF000008): 570 mm

More info

▲
  • Pack (number of units)1
  • Volume (dm3)29.036
  • Weight (g)8 118.00
Product characteristics
Fixing automatic transfer switches DPX³ 630
Devices in horizontal position
  • For 2 fixed or draw-out devices
General characteristics
Equipment for XL³ 4000 - for mounting on adjustable plates: DPX³ 630 plug-in, draw-out version or automatic transfer switches
  • Adjustable plates are used for front terminal/rear terminal connection and mounting of motor-driven or rotary handles
