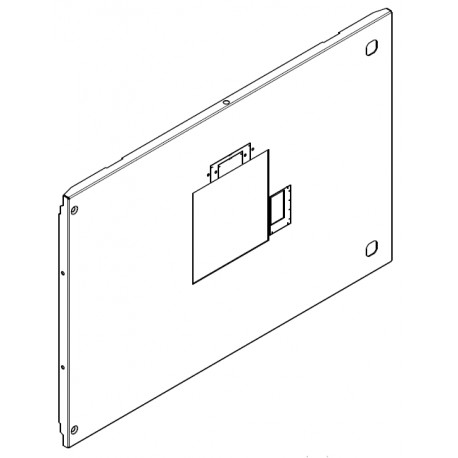

LEGRAND 021072 021072 LEGRAND XL3 COVER DPX3 630+MOTOR SECT V View larger
Images are for illustrative purposes only. Please refer to data sheet for details

021072 LEGRAND XL3 COVER DPX3 630+MOTOR SECT V

021072

021072

LEGRAND

1 Pcs.

XL3 COVER DPX3 630+MOTOR SECT V Metal faceplate for XL³ S 4000 enclosures - 1 draw-out device without elcb in vertical position with motor-driven handle Metal terminal cover XL³ 4000 - 1 DPX³ 630 sect. - Motorized control

Automation > Front plate (switchgear cabinet)
XL3 800-4000 ENERGY DISTRIBUTION CABINETS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A Legrand XL3 COVER DPX3 630+MOTOR SECT V is a tailored enclosure front cover designed to accommodate motorized circuit breaker configurations safely within industrial switchboards. Such covers provide structural integrity and visual uniformity while isolating high-voltage internal switching zones.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Height (EF000040): 400 mm
  • Material (EF002169): Steel
  • Surface finishing (EF006569): Powder coated
  • Suitable for enclosure building width (EF000326): 725 mm
  • Width (EF000008): 600 mm

More info

▲
  • Pack (number of units)1
  • Volume (dm3)11.255
  • Weight (g)2 755.00
Product characteristics
Metal faceplates for draw-out devices
  • Faceplates with hinges and lock
Devices in vertical position with motor-driven handle
  • For 1 device without elcb
General characteristics
Equipment for XL³ 4000 - for mounting on adjustable plates: DPX³ 630 plug-in, draw-out version or automatic transfer switches
  • Adjustable plates are used for front terminal/rear terminal connection and mounting of motor-driven or rotary handles
