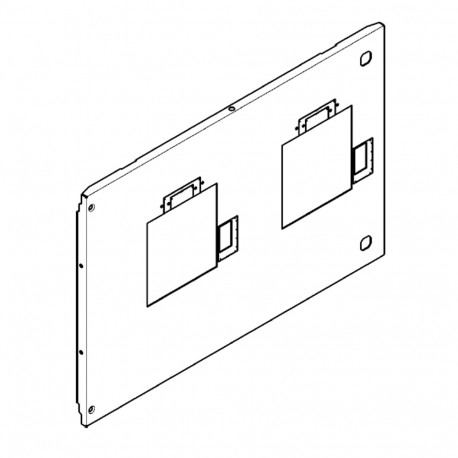

LEGRAND 021069 021069 LEGRAND XL3 COVER DPX3 630MOTOR SEC INV View larger
Images are for illustrative purposes only. Please refer to data sheet for details

021069 LEGRAND XL3 COVER DPX3 630MOTOR SEC INV

021069

021069

LEGRAND

1 Pcs.

XL3 COVER DPX3 630MOTOR SEC INV Metal faceplate for automatic transfer switch XL³ 4000 - 2 DPX³ draw-out with motor-driven handle Metal terminal cover XL³ 4000 - 2 DPX³ 630 sect. - Network inverter motor control

Automation > Front plate (switchgear cabinet)
XL3 800-4000 ENERGY DISTRIBUTION CABINETS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

XL3 cover dpx3 630motor sec inv manufactured by Legrand with part number 021069. Such dedicated barrier covers are deployed in electrical switchboards to segregate motorized switching devices and maintain internal safety ratings.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Height (EF000040): 600 mm
  • Number of height units (EF003561): 12
  • Material (EF002169): Steel
  • Surface finishing (EF006569): Powder coated
  • Suitable for enclosure building width (EF000326): 725 mm
  • Width (EF000008): 600 mm
  • Suitable for enclosure building height (EF009583): 2200 mm

More info

▲
  • Pack (number of units)1
  • Volume (dm3)11.255
  • Weight (g)2 585.00
Product characteristics
Metal faceplates for automatic transfer switches
For draw-out DPX³ 630 in vertical position
  • With hinges and lock
  • For 2 devices with motor-driven handle
General characteristics
Equipment for XL³ 4000 - for mounting on adjustable plates: DPX³ 630 plug-in, draw-out version or automatic transfer switches
  • Adjustable plates are used for front terminal/rear terminal connection and mounting of motor-driven or rotary handles
