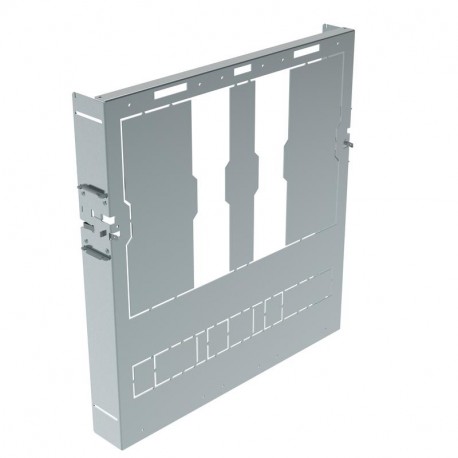

LEGRAND 021061 021061 LEGRAND XL3 P. REG. DPX3 630 EXT/SECC View larger
Images are for illustrative purposes only. Please refer to data sheet for details

021061 LEGRAND XL3 P. REG. DPX3 630 EXT/SECC

021061

021061

LEGRAND

1 Pcs.

XL3 P. REG. DPX3 630 EXT/SECC Adjustable fixing device XL³ 4000 -for 1-2 DPX³ 630 plug-in/draw-out+elcbs -vert Adjustable clamping device XL³ 4000 - From - 1 to 2 removable DPX³ 630/section

Automation > Component for installation (switchgear cabinet)
XL3 800-4000 ENERGY DISTRIBUTION CABINETS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

021061 LEGRAND XL3 P. REG. DPX3 630 EXT/SECC components serve as structural partitioning elements inside electrical distribution boards to safely mount and compartmentalize circuit breakers. These mechanical frames support modular switchgear arrangements while maintaining proper internal spacing and accessibility. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Height (EF000040): 600 mm
  • Material (EF002169): Metal
  • Suitable for enclosure building width (EF000326): 725 mm
  • Width (EF000008): 600 mm

More info

▲
  • Pack (number of units)1
  • Volume (dm3)36.89
  • Weight (g)5 228.00
Product characteristics
Fixing plug-in or draw-out version DPX³ 630, with front or rear terminals
Adjustable fixing devices for MCCBs in vertical position
  • The MCCBs are fixed using special plates
  • For 1 to 2 DPX³ 630 with elcbs
General characteristics
Equipment for XL³ 4000 - for mounting on adjustable plates: DPX³ 630 plug-in, draw-out version or automatic transfer switches
  • Adjustable plates are used for front terminal/rear terminal connection and mounting of motor-driven or rotary handles
