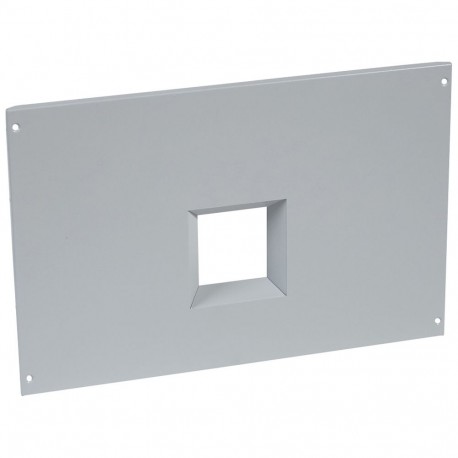

LEGRAND 020986 020986 LEGRAND XL3 COVER DPX1600 INV SELF View larger
Images are for illustrative purposes only. Please refer to data sheet for details

020986 LEGRAND XL3 COVER DPX1600 INV SELF

020986

020986

LEGRAND

1 Pcs.

XL3 COVER DPX1600 INV SELF Metal faceplate for automatic transfer switch in XL³ 4000 - for 2 fixed DPX³ 1600 Metal terminal cover XL³ 4000 - 2 DPX³ 1600 fixed - inverter sources

Automation > Front plate (switchgear cabinet)
XL3 800-4000 ENERGY DISTRIBUTION CABINETS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A Legrand 020986 enclosure cover closes off designated sections of modular distribution boards to maintain proper internal separation. Protective covers shield internal wiring and equipment from dust while restricting access to authorized personnel only. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Height (EF000040): 800 mm
  • Material (EF002169): Steel
  • Surface finishing (EF006569): Powder coated
  • Suitable for enclosure building width (EF000326): 725 mm
  • Width (EF000008): 600 mm
  • Suitable for enclosure building height (EF009583): 2200 mm

More info

▲
  • Pack (number of units)1
  • Volume (dm3)25.00
  • Weight (g)5 683.00
Product characteristics
Metal faceplates for automatic transfer switches
For fixed version DPX³ 1600
  • With captive screws
  • 24 modules
  • Hinges Cat.No 0 209 59 available as an option
  • For 2 DPX³ 1600
General characteristics
Equipment for XL³ 4000 - for mounting on adjustable plates: DPX³ 1600 draw-out version and automatic transfer switches
  • Adjustable plates are used for front terminal/rear terminal connection and mounting of motor-driven or rotary handles
