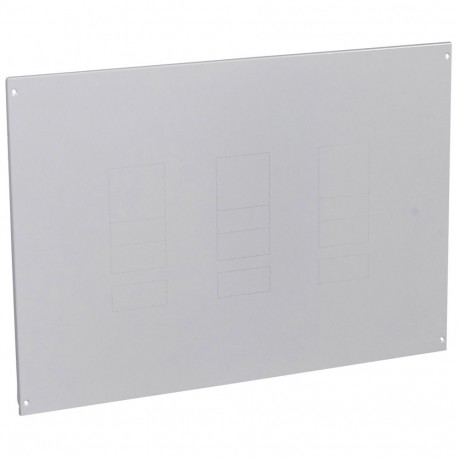

LEGRAND 020972 020972 LEGRAND XL3 COVER DPX 250/630 L850 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

020972 LEGRAND XL3 COVER DPX 250/630 L850

020972

020972

LEGRAND

1 Pcs.

XL3 COVER DPX 250/630 L850 Metal faceplate XL³ 800/4000 - 1-3 DPX 250/630+elcb - vertical - screws - 36 modules Metal terminal cover XL³ 800/4000 - From - 1 to 3 DPX³ 630 diff. Vertical H600

Automation > Front plate (switchgear cabinet)
XL3 800-4000 ENERGY DISTRIBUTION CABINETS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A Legrand cover provides structural separation and operator protection inside complex electrical enclosures, ensuring circuit breakers and control components remain securely isolated. The Legrand 020972 steel unit is finished for high durability in industrial environments.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Height (EF000040): 600 mm
  • Material (EF002169): Steel
  • Surface finishing (EF006569): Powder coated
  • Suitable for enclosure building width (EF000326): 910 mm
  • Width (EF000008): 850 mm
  • Suitable for enclosure building height (EF009583): 1950 mm

More info

▲
  • Pack (number of units)1
  • Volume (dm3)16.00
  • Weight (g)5 680.00
Product characteristics
Metal faceplates for devices in vertical position
For 1 to 3 DPX³ 630 with downstream elcbs
  • 36 modules
  • Hinges Cat.No 0 209 59 available as an option
  • With captive screws
General characteristics
Equipment for XL³ 4000 - for mounting on adjustable plates: DPX³ 630 fixed version
  • Adjustable plates are used for front terminal/rear terminal connection and mounting of motor-driven or rotary handles
