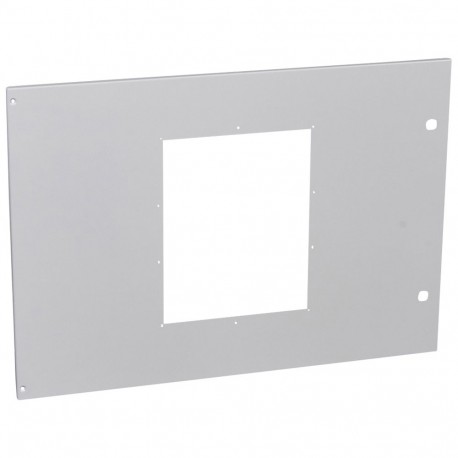

LEGRAND 020948 020948 LEGRAND XL3 COVER DMX3 L850 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

020948 LEGRAND XL3 COVER DMX3 L850

020948

020948

LEGRAND

1 Pcs.

XL3 COVER DMX3 L850 Metal faceplate XL³ 4000 - 1 DMX³ 2500/4000 3P/4P / 1 DMX³-I2500/4000-W=850 Metal terminal cover XL³ 4000 - 1 DMX³ and DMX - I - L850mm - 36mod

Automation > Front plate (switchgear cabinet)
XL3 800-4000 ENERGY DISTRIBUTION CABINETS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Legrand XL3 cover for DMX3 air circuit breakers provides heavy-duty physical separation and shielding inside industrial power distribution switchboards. Large enclosure panels of this type safeguard critical main breaker compartments from accidental contact.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Height (EF000040): 600 mm
  • Material (EF002169): Steel
  • Surface finishing (EF006569): Powder coated
  • Suitable for enclosure building width (EF000326): 910 mm
  • Width (EF000008): 850 mm
  • Suitable for enclosure building height (EF009583): 1950 mm

More info

▲
  • Pack (number of units)1
  • Volume (dm3)28.00
  • Weight (g)5 494.00
Product characteristics
Metal faceplates for DMX³ 2500 / 4000 and DMX³-I fixed or draw-out version
  • Faceplates with hinges and lock
Width 850 mm
  • 36 modules
  • For 1 DMX³ 2500/4000, N/H/L, 3P/4P or 1 DMX³-I 2500/4000
General characteristics
Equipment for XL³ 4000 - for mounting on plate: DMX³ 2500 and 4000 and DMX³-I fixed or draw-out version
