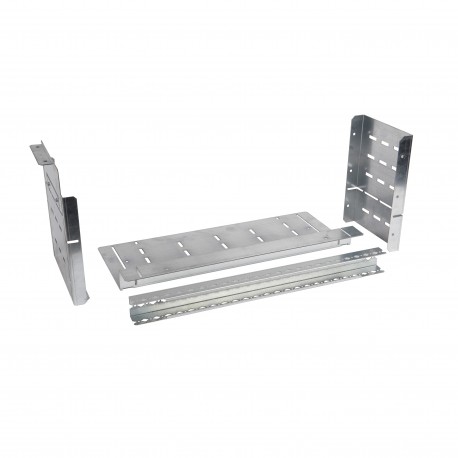

LEGRAND 020876 020876 LEGRAND XL3 KIT SEPAR. BUS HORIZ View larger
Images are for illustrative purposes only. Please refer to data sheet for details

020876 LEGRAND XL3 KIT SEPAR. BUS HORIZ

020876

020876

LEGRAND

1 Pcs.

XL3 KIT SEPAR. BUS HORIZ U-shaped separation kit 4000 A max for XL³4000/6300 depth 975 mm internal cable sleeves 4000A Horizontal Busbar U-Clearance Kit for CL int. - D975

Automation > Divider panel (switchgear cabinet)
XL3 800-4000 ENERGY DISTRIBUTION CABINETS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Legrand XL3 kit separ. bus horiz (020876) provides the necessary hardware to install horizontal busbar segregation within large electrical distribution cabinets. This separation kit ensures proper compartmentalization, protecting technicians and isolating distinct electrical circuits inside the main enclosure frame. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • For internal separation form 3b (EF009589): Yes
  • With lock (EF006306): No
  • Material (EF002169): Steel
  • For internal separation form 3a (EF009588): No
  • For internal separation form 2b (EF009587): Yes
  • For internal separation form 2a (EF009586): No
  • For internal separation form 4b (EF009591): No
  • For internal separation form 4a (EF009590): Yes
  • With cable entry (EF000325): Yes
  • Construction type (EF000767): Individual part
  • Suitable for enclosure building depth (EF000327): 975 mm

More info

▲
  • Pack (number of units)1
  • Volume (dm3)17.00
  • Weight (g)7 614.00
Product characteristics
U-shaped separation kit for horizontal busbars 4000 A max.
For internal cable sleeves depth 975 mm
  • For forms:
    • 2b (front terminals connection)
    • 3b (front terminals connection)
    • 4a (front terminals connection)
General characteristics
Forms of separation equipment for XL³ 1600, 4000 and 6300
