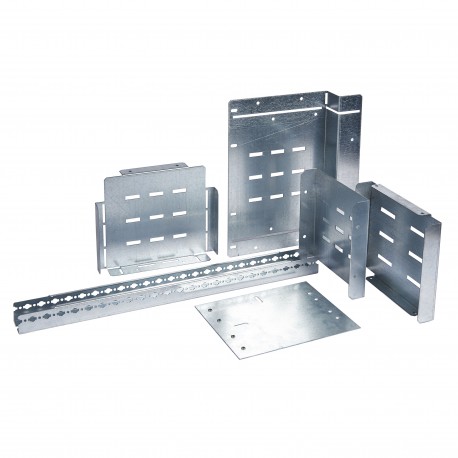

LEGRAND 020871 020871 LEGRAND XL3 KIT SEPAR. BUS HORIZ View larger
Images are for illustrative purposes only. Please refer to data sheet for details

020871 LEGRAND XL3 KIT SEPAR. BUS HORIZ

020871

020871

LEGRAND

1 Pcs.

XL3 KIT SEPAR. BUS HORIZ U-shaped separation kit 1600 A max for XL³4000/6300 depth 725 mm internal cable sleeves 1600A Horizontal Busbar U-Clearance Kit for CL int. - D725

Automation > Divider panel (switchgear cabinet)
XL3 800-4000 ENERGY DISTRIBUTION CABINETS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Legrand part number 020871 serves as a horizontal busbar separation kit used inside industrial electrical enclosures. Busbar separation kits establish physical barriers between main bus structures and functional units, improving safety and compliance in distribution panels. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • For internal separation form 3b (EF009589): Yes
  • With lock (EF006306): No
  • Material (EF002169): Steel
  • For internal separation form 3a (EF009588): No
  • For internal separation form 2b (EF009587): Yes
  • For internal separation form 2a (EF009586): No
  • For internal separation form 4b (EF009591): No
  • For internal separation form 4a (EF009590): Yes
  • With cable entry (EF000325): Yes
  • Construction type (EF000767): Individual part
  • Suitable for enclosure building depth (EF000327): 725 mm

More info

▲
  • Pack (number of units)1
  • Volume (dm3)12.00
  • Weight (g)5 362.00
Product characteristics
U-shaped separation kit for horizontal busbars 1600 A max.
For internal cable sleeves depth 725 mm
  • For forms:
    • 2b (front terminals connection)
    • 3b (front terminals connection)
    • 4a (front terminals connection)
General characteristics
Forms of separation equipment for XL³ 1600, 4000 and 6300
