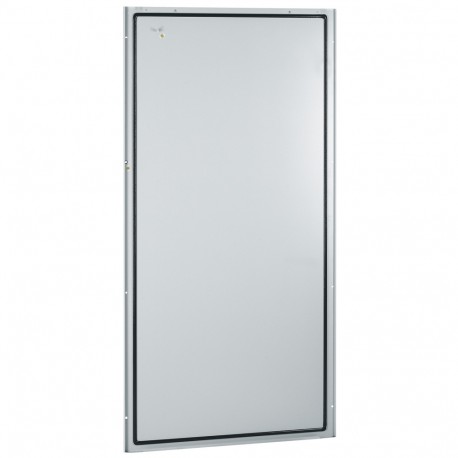

LEGRAND 020859 020859 LEGRAND XL3 PANEL LAT/POST 975 H2200 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

020859 LEGRAND XL3 PANEL LAT/POST 975 H2200

020859

020859

LEGRAND

1 Pcs.

XL3 PANEL LAT/POST 975 H2200 Rear and side panels XL³ 4000/6300 - height 2200 mm - width 975 mm Back and side panel XL³ 4000/6300 - fastening with H2200mm L.975mm screws

Automation > Side/back panel (switchgear cabinet)
XL3 800-4000 ENERGY DISTRIBUTION CABINETS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

This 020859 LEGRAND XL3 PANEL LAT/POST 975 H2200 serves as a structural panel element used within modular electrical enclosure setups to enclose side or rear framing sections. Panels like this are commonly implemented in commercial building switchboards and industrial automation assemblies to maintain cabinet rigidity and system organization.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Height (EF000040): 2076 mm
  • Modular spacing (EF000394): 975 mm
  • Material (EF002169): Steel
  • With lock (EF006306): No
  • Surface finishing (EF006569): Powder coated
  • Suitable as side panel (EF008287): Yes
  • Suitable as rear panel (EF008288): Yes
  • Colour (EF000007): Grey
  • Suitable for enclosure building width (EF000326): 975 mm
  • RAL-number (EF000116): 7035
  • With cable entry (EF000325): No
  • Suitable for enclosure building depth (EF000327): 975 mm
  • Width (EF000008): 956 mm

More info

▲
  • Pack (number of units)1
  • Volume (dm3)75.00
  • Weight (g)24 588.00
Product characteristics
Enclosures modular metal
Side panels
  • Fixed with screws
  • Width 975 mm
  • Height : 2200 mm
General characteristics
Distribution enclosures XL³ 6300
  • IP 30 - IK 07
  • Consist of the combination of a "roof-base" assembly, structural uprights, rear and side panels RAL 7035, plinths RAL 7004
  • Height 2200 mm, usable faceplate height 2000 mm
