View larger
Images are for illustrative purposes only. Please refer to data sheet for details

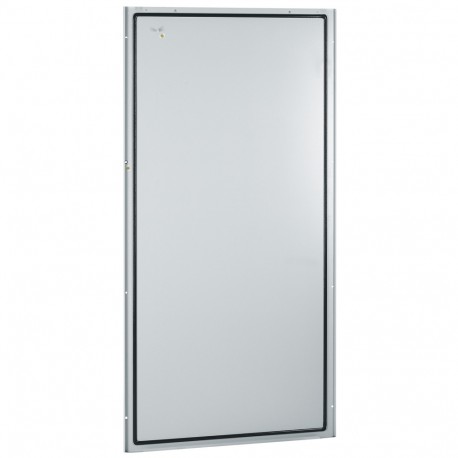

020858 LEGRAND XL3 PANEL LAT/POST 725 H2200
020858
020858
LEGRAND
1 Pcs.
XL3 PANEL LAT/POST 725 H2200
Rear and side panels XL³ 4000/6300 - height 2200 mm - width 725 mm
Back and side panel XL³ 4000/6300 - fastening with H2200mm L.725mm screws
Automation > Side/back panel (switchgear cabinet)
XL3 800-4000 ENERGY DISTRIBUTION CABINETS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲- Pack (number of units)1
- Volume (dm3)58.00
- Weight (g)18 804.00
Product characteristics
Enclosures modular metalSide panels
- Fixed with screws
- Width 725 mm
- Height : 2200 mm
General characteristics
Distribution enclosures XL³ 6300- IP 30 - IK 07
- Consist of the combination of a "roof-base" assembly, structural uprights, rear and side panels RAL 7035, plinths RAL 7004
- Height 2200 mm, usable faceplate height 2000 mm
| Feature Name | Feature Value |
|---|---|
| Height (EF000040) | 2076 mm |
| Modular spacing (EF000394) | 725 mm |
| Material (EF002169) | Steel |
| With lock (EF006306) | No |
| Surface finishing (EF006569) | Powder coated |
| Suitable as side panel (EF008287) | Yes |
| Suitable as rear panel (EF008288) | Yes |
| Colour (EF000007) | Grey |
| Suitable for enclosure building width (EF000326) | 725 mm |
| RAL-number (EF000116) | 7035 |
| With cable entry (EF000325) | No |
| Suitable for enclosure building depth (EF000327) | 725 mm |
| Width (EF000008) | 706 mm |
