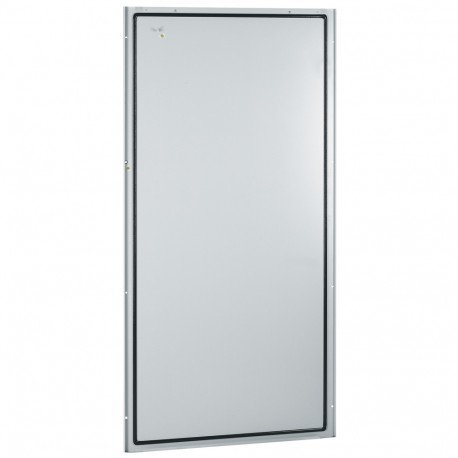

LEGRAND 020857 020857 LEGRAND XL3 PANEL LAT/POST 475 H2200 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

020857 LEGRAND XL3 PANEL LAT/POST 475 H2200

020857

020857

LEGRAND

1 Pcs.

XL3 PANEL LAT/POST 475 H2200 Rear and side panels XL³ 4000/6300 - height 2200 mm - width 475 mm Back and side panel XL³ 4000/6300 - fastening with H2200mm L.475mm screws

Automation > Side/back panel (switchgear cabinet)
XL3 800-4000 ENERGY DISTRIBUTION CABINETS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Legrand 020857 XL3 panel lat/post is a structural enclosure part utilized as a side or rear panel in modular industrial electrical distribution assemblies. Panel components are essential for enclosing switchboard systems, protecting sensitive equipment from environmental hazards, and ensuring mechanical stability. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Height (EF000040): 2076 mm
  • Modular spacing (EF000394): 475 mm
  • Material (EF002169): Steel
  • With lock (EF006306): No
  • Surface finishing (EF006569): Powder coated
  • Suitable as side panel (EF008287): Yes
  • Suitable as rear panel (EF008288): Yes
  • Colour (EF000007): Grey
  • Suitable for enclosure building width (EF000326): 475 mm
  • RAL-number (EF000116): 7035
  • With cable entry (EF000325): No
  • Suitable for enclosure building depth (EF000327): 475 mm
  • Width (EF000008): 456 mm

More info

▲
  • Pack (number of units)1
  • Volume (dm3)37.00
  • Weight (g)10 600.00
Product characteristics
Enclosures modular metal
Side panels
  • Fixed with screws
  • Width 475 mm
  • Height : 2200 mm
General characteristics
Distribution enclosures XL³ 6300
  • IP 30 - IK 07
  • Consist of the combination of a "roof-base" assembly, structural uprights, rear and side panels RAL 7035, plinths RAL 7004
  • Height 2200 mm, usable faceplate height 2000 mm
