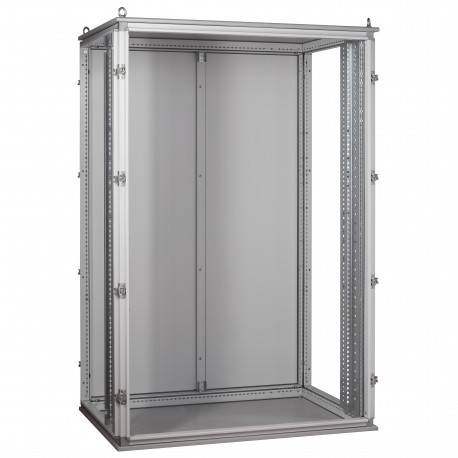

020855 LEGRAND XL3 FIXED FRAME WITHOUT a CELL H2200
020855
020855
LEGRAND
1 Pcs.
XL3 FIXED FRAME WITHOUT a CELL H2200
Support frame XL³ 4000/6300 - fixed for enclosure w.725/975 without sleeve
Frame for terminal cover covers XL³ 4000/6300 L. 725 or 975mm H2200mm
Automation > Component for installation (switchgear cabinet)
XL3 800-4000 ENERGY DISTRIBUTION CABINETS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A Legrand 020855 fixed frame without a cell provides structural support and modular compartment formatting for large-scale switchboard and distribution enclosure installations.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Height (EF000040): 2200 mm
- Material (EF002169): Metal
- Suitable for enclosure building width (EF000326): 975 mm
- Suitable for enclosure building depth (EF000327): 975 mm
- Suitable for enclosure building height (EF009583): 2200 mm
More info
▲- Pack (number of units)1
- Volume (dm3)9.00
- Weight (g)4 400.00
Product characteristics
EquipmentSupport frame for faceplates
- Fixed for enclosure width 725 mm or enclosure width 975 mm without internal cable sleeves
- Height : 2200 mm
General characteristics
Distribution enclosures XL³ 6300- IP 30 - IK 07
- Consist of the combination of a "roof-base" assembly, structural uprights, rear and side panels RAL 7035, plinths RAL 7004
- Height 2200 mm, usable faceplate height 2000 mm
