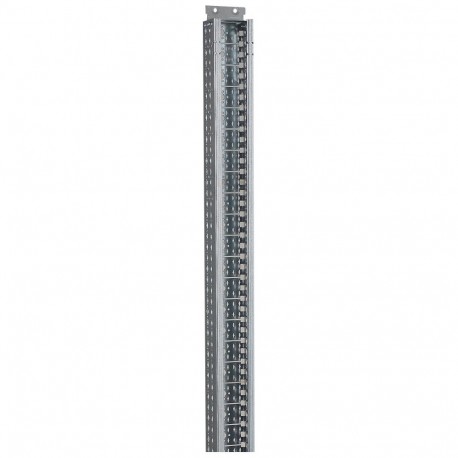

020854 LEGRAND XL3 MONT FUNCTIONAL H2200

020854

020854

LEGRAND

1 Pcs.

XL3 MONT FUNCTIONAL H2200 Functional uprights XL³ 4000 (2) -for enclosure with cable sleeve - H. 2200 mm Functional upright (2) XL³ 4000 for cabinet with cell H2200mm

Automation > Component for installation (switchgear cabinet)
XL3 800-4000 ENERGY DISTRIBUTION CABINETS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An 020854 LEGRAND XL3 MONT FUNCTIONAL H2200 is a modular functional upright framework designed to support internal chassis equipment within large industrial distribution enclosures. It provides a standardized structural grid for mounting electrical switchgear and busbar assemblies safely. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Height (EF000040): 2200 mm
  • Material (EF002169): Metal
  • Suitable for enclosure building width (EF000326): 975 mm
  • Suitable for enclosure building depth (EF000327): 975 mm
  • Suitable for enclosure building height (EF009583): 2200 mm

More info

▲
  • Pack (number of units)1
  • Volume (dm3)51.00
  • Weight (g)13 800.00
Product characteristics
Equipment
Functional uprights
  • Set of 2 functional uprights
  • For fixing mounting equipment (faceplate, rails…)
  • For enclosure with cable sleeve
  • Height : 2200 mm
General characteristics
Distribution enclosures XL³ 4000
  • IP 30 - IK 07
  • IP 55 - IK 08 with door and sealing kit for use when joining enclosures
  • Consist of the combination of a "roof-base" assembly, structural uprights, functional uprights, rear and side panels RAL 7035, plinths RAL 7004
  • Height 2000 or 2200 mm.
  • Capacity 24 modules (enclosures width 725 or width 975 with internal cable sleeve), 36 modules (enclosures width 975)
  • Usable faceplate height 1800 mm (1700 mm only if using the pivoting support frame) or 2000 mm

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
